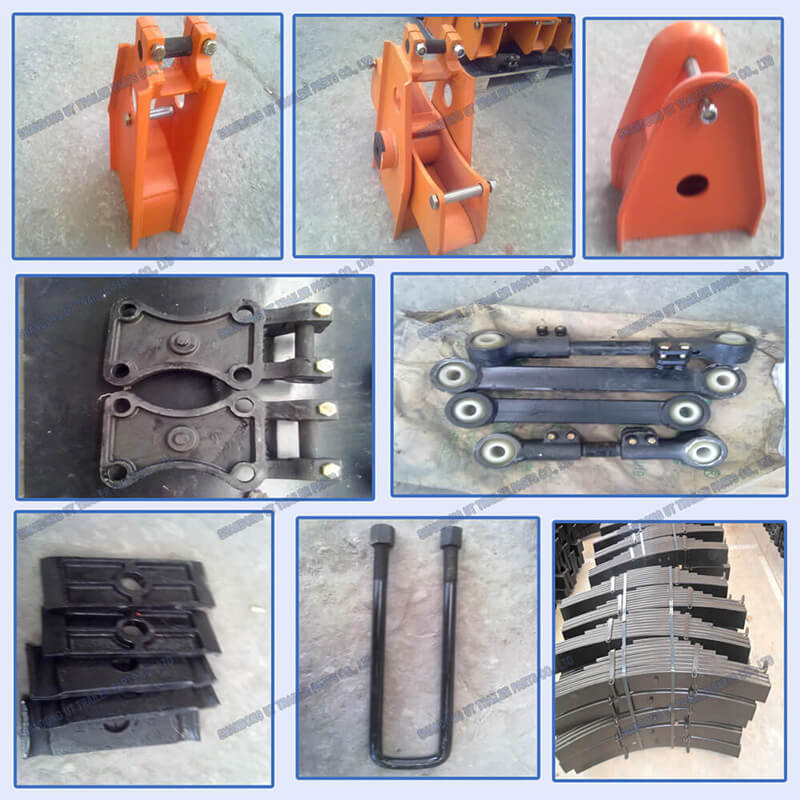

FEATURE
1) Hanger thickness: 4mm, 4.5mm, 6mm, 8mm or 10mm
2) King pin: 50mm, 60mm, 70mm
3) Suspension height: 130-350mm
4) Color: black/ red/orange/ by customer
5) Material: Q235B
6) Spring width: 75mm, 90mm, 100mm, 120mm
7) Axle spacing: 1310mm, 1360mm
8) No. Of spring piece/spring quantity is optional
9) Axle load is optional
10) Size: design as your requirement
11) Max payload: 55T for complete suspension
12) Axle beam: square/ round
13) Fishing: painting or galvanizing

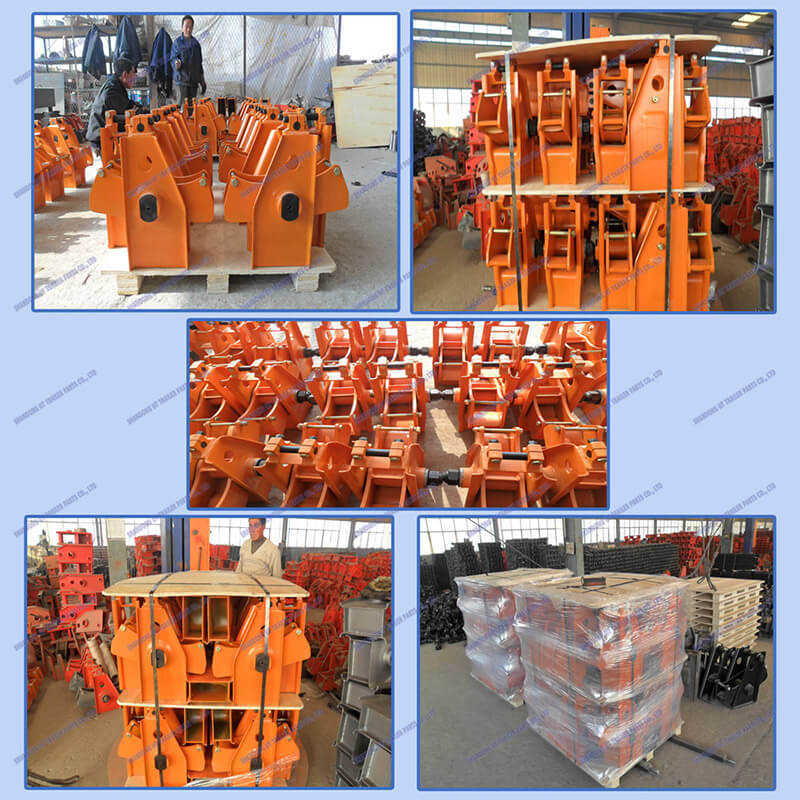

14) Packing details: wooden tray or other ways according to your requirements
IMPORTANT REMARK: we can produce fully according with your samples and drawings.
PARAMETER
ONE-AXLE TYPE
悬挂型号 ITEM | A1(mm) | L1(mm) | L2(mm) | 承载能力(kg) AXLE LOAD (kg) |
UT68AS131001 | 390 | 470 | 950 | 13000*1 |
UT68AS131002 | 420 | 470 | 950 | 13000*1 |
UT68AS131003 | 450 | 470 | 950 | 13000*1 |
UT68AS131004 | 470 | 470 | 950 | 13000*1 |
UT68AS131005 | 490 | 470 | 950 | 13000*1 |
UT68AS131006 | 510 | 470 | 950 | 13000*1 |

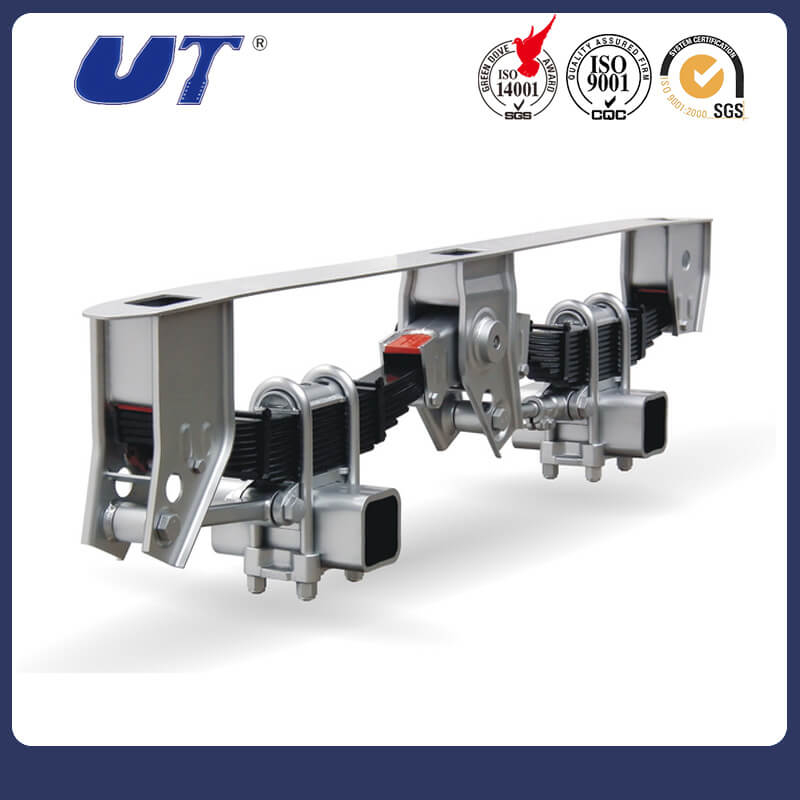

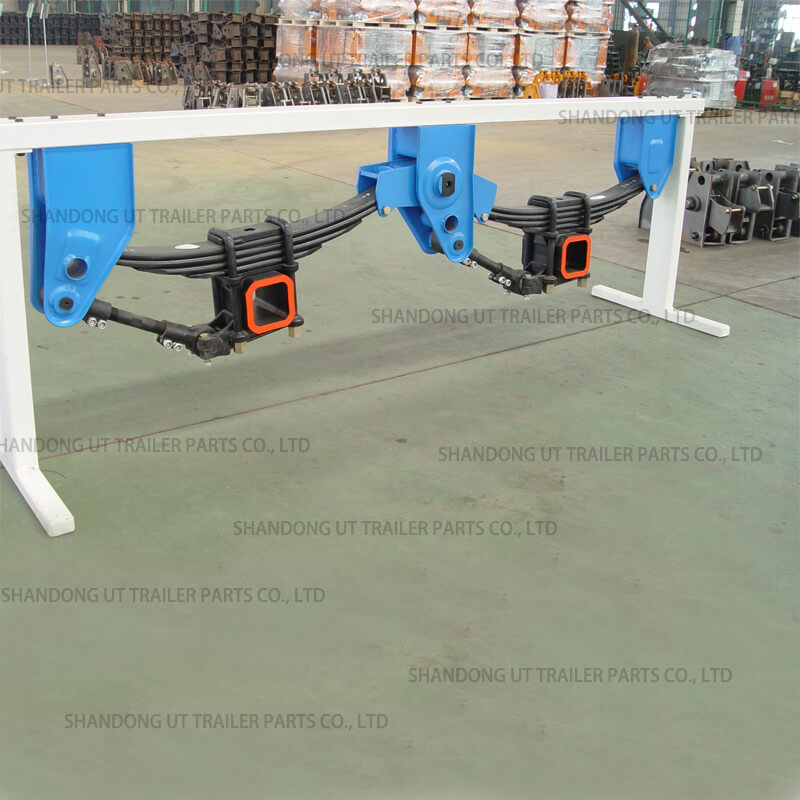

TWO-AXLE TYPE
悬挂型号 ITEM | A1(mm) | A2(mm) | L1(mm) | L2(mm) | L3(mm) | L4(mm) | L5(mm) | H(mm) | 承载能力(kg) AXLE LOAD (kg) |
UT68AS132001 | 370 | 370 | 470 | 1310 | 470 | 1125 | 1125 | 130 | 13000*2 |
UT68AS132002 | 390 | 390 | 470 | 1310 | 470 | 1125 | 1125 | 150 | 13000*2 |
UT68AS132003 | 420 | 420 | 470 | 1310 | 470 | 1125 | 1125 | 180 | 13000*2 |
UT68AS132004 | 450 | 450 | 470 | 1310 | 470 | 1125 | 1125 | 210 | 13000*2 |
UT68AS132005 | 470 | 470 | 470 | 1310 | 470 | 1125 | 1125 | 230 | 13000*2 |
UT68AS132006 | 490 | 490 | 470 | 1310 | 470 | 1125 | 1125 | 250 | 13000*2 |
UT68AS132007 | 510 | 510 | 470 | 1310 | 470 | 1125 | 1125 | 270 | 13000*2 |
THREE-AXLE TYPE
悬挂型号 ITEM | A1(mm) | A2(mm) | A3(mm) | L1(mm) | L2(mm) | L3(mm) | L4(mm) | L5(mm) | H(mm) | 承载能力(kg) AXLE LOAD (kg) |
UT68AS133001 | 370 | 370 | 370 | 470 | 1310 | 470 | 1125 | 1125 | 130 | 13000*3 |
UT68AS133002 | 390 | 390 | 390 | 470 | 1310 | 470 | 1125 | 1125 | 150 | 13000*3 |
UT68AS133003 | 420 | 420 | 420 | 470 | 1310 | 470 | 1125 | 1125 | 180 | 13000*3 |
UT68AS133004 | 450 | 450 | 450 | 470 | 1310 | 470 | 1125 | 1125 | 210 | 13000*3 |
UT68AS133005 | 470 | 470 | 470 | 470 | 1310 | 470 | 1125 | 1125 | 230 | 13000*3 |
UT68AS133006 | 490 | 490 | 490 | 470 | 1310 | 470 | 1125 | 1125 | 250 | 13000*3 |
UT68AS133007 | 510 | 510 | 510 | 470 | 1310 | 470 | 1125 | 1125 | 270 | 13000*3 |
