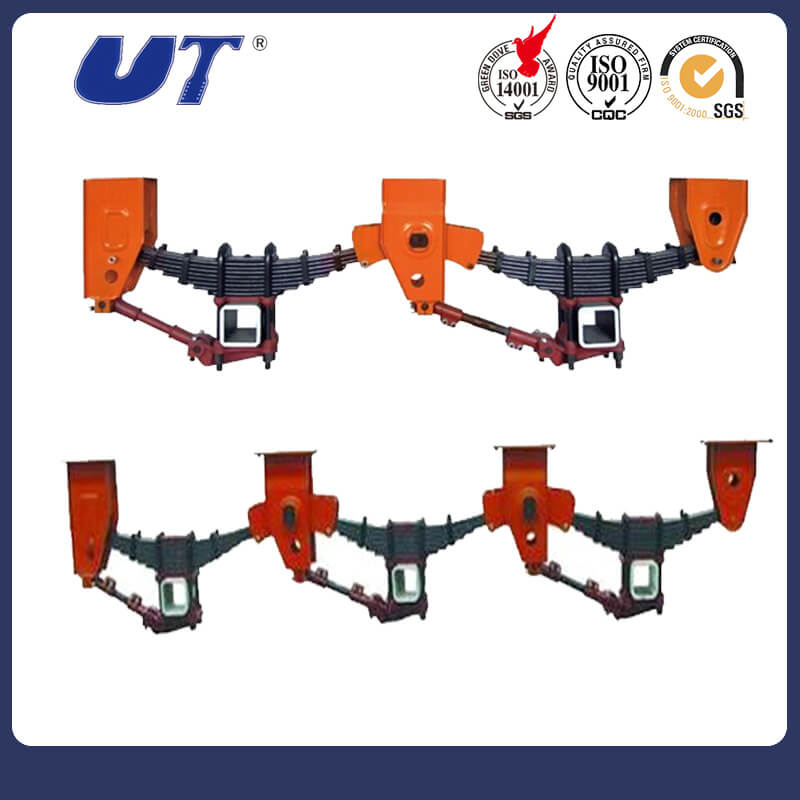

| Quantity: | |
|---|---|
1) Hanger thickness: 4mm, 4.5mm, 6mm, 8mm or 10mm
2) King pin: 50mm, 60mm, 70mm
3) Suspension height: 130-350mm
4) Color: black/ red/orange/ by customer
5) Material: Q235B
6) Spring width: 75mm, 90mm, 100mm, 120mm
7) Axle spacing: 1310mm, 1360mm
8) No. Of spring piece/spring quantity is optional
9) Axle load is optional
10) Size: design as your requirement
11) Max payload: 55T for complete suspension
12) Axle beam: square/ round
13) Fishing: painting or galvanizing
14) Packing details: wooden tray or other ways according to your requirements
IMPORTANT REMARK: we can produce fully according with your samples and drawings.

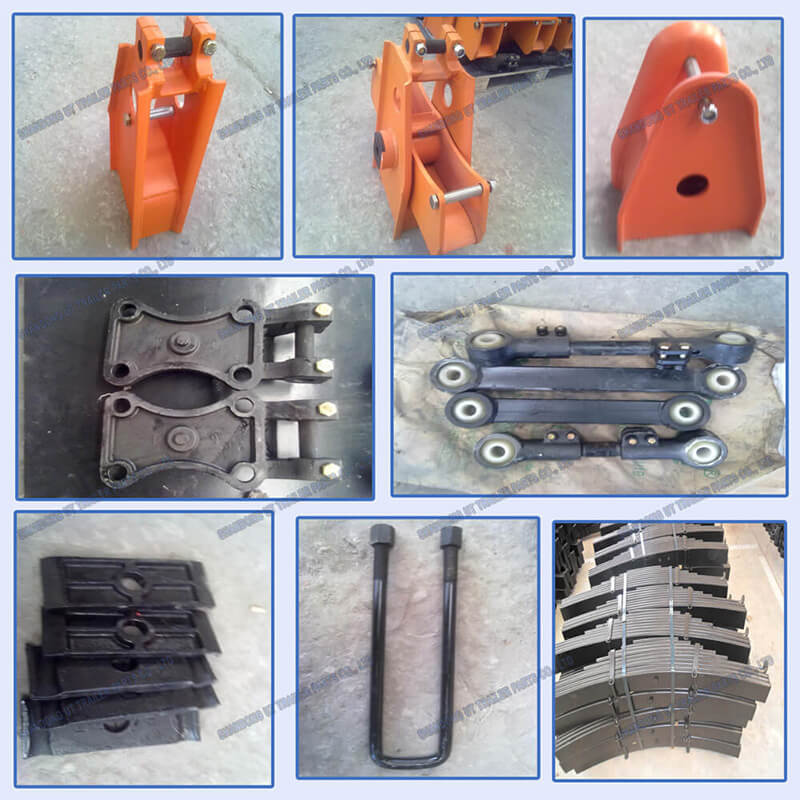

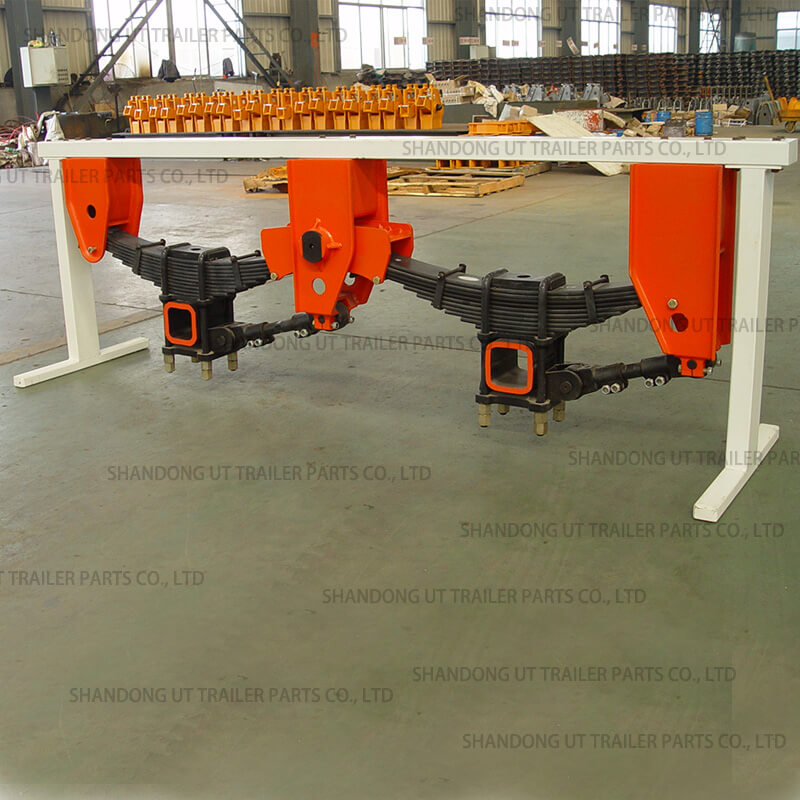

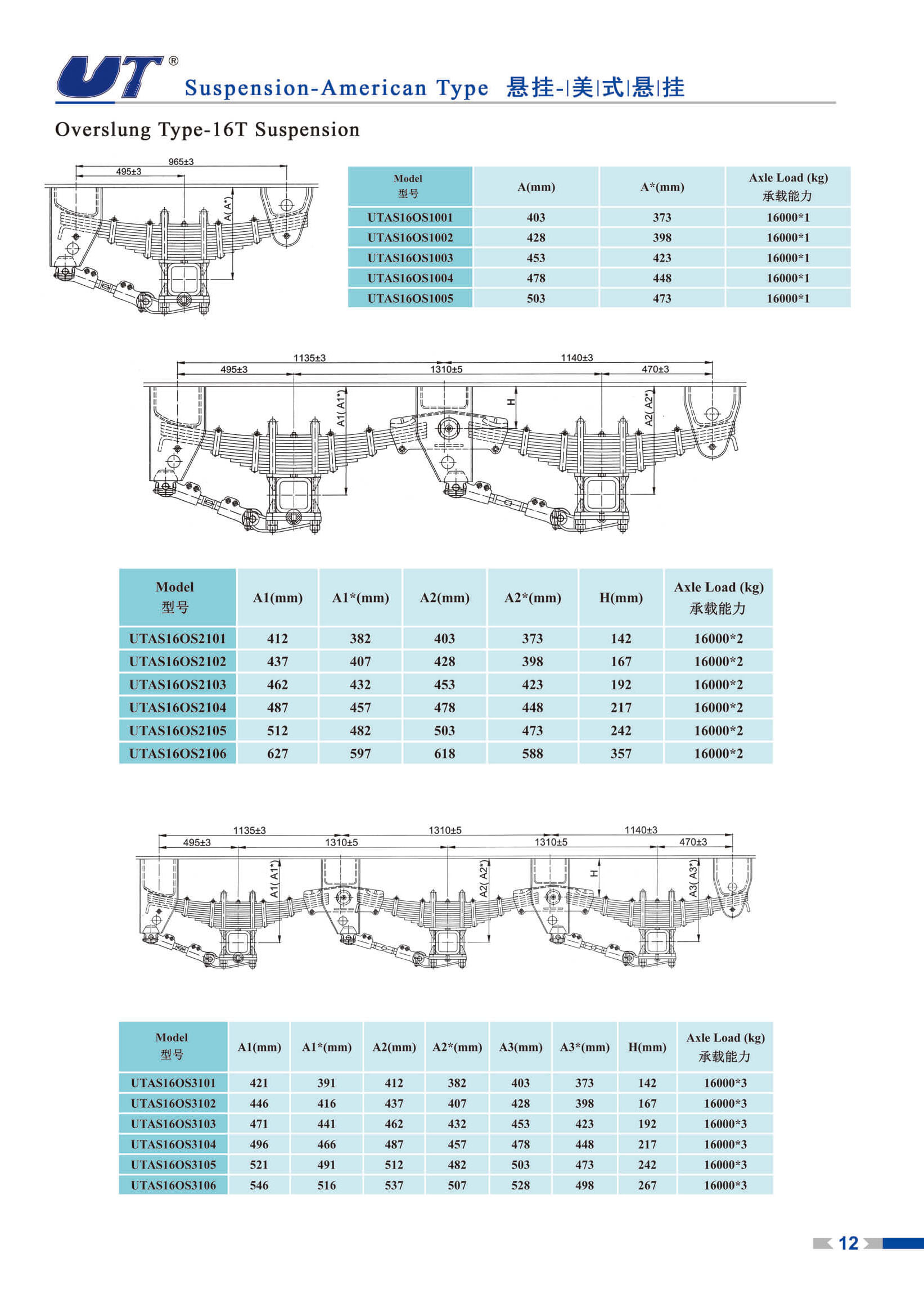

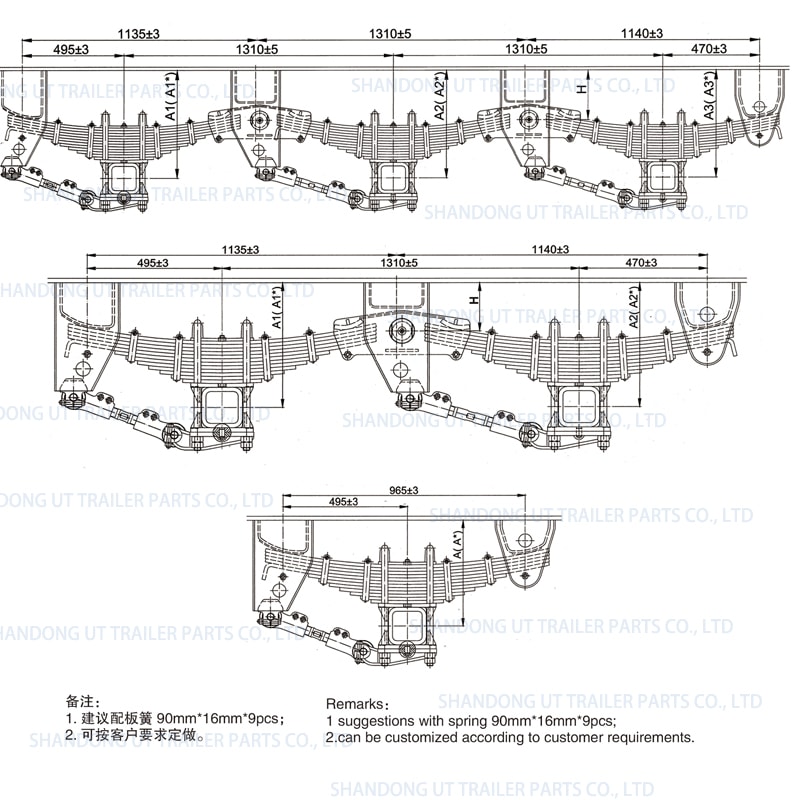

PARAMETER
ONE AXLE TYPE
悬挂型号 ITEM | A(mm) | A*(mm) | 承载能力(kg) AXLE LOAD (kg) |
UTAS16OS1001 | 403 | 373 | 16000*1 |
UTAS16OS1002 | 428 | 398 | 16000*1 |
UTAS16OS1003 | 453 | 423 | 16000*1 |
UTAS16OS1004 | 478 | 448 | 16000*1 |
UTAS16OS1005 | 503 | 473 | 16000*1 |
TWO AXLE TYPE
悬挂型号 ITEM | A1(mm) | A1*(mm) | A2(mm) | A2*(mm) | H(mm) | 承载能力(kg) AXLE LOAD (kg) |
UTAS16OS2101 | 412 | 382 | 403 | 373 | 142 | 16000*2 |
UTAS16OS2102 | 437 | 407 | 428 | 398 | 167 | 16000*2 |
UTAS16OS2103 | 462 | 432 | 453 | 423 | 192 | 16000*2 |
UTAS16OS2104 | 487 | 457 | 478 | 448 | 217 | 16000*2 |
UTAS16OS2105 | 512 | 482 | 503 | 473 | 242 | 16000*2 |
UTAS16OS2106 | 627 | 597 | 618 | 588 | 357 | 16000*2 |
THREE AXLE TYPE
悬挂型号 ITEM | A1(mm) | A1*(mm) | A2(mm) | A2*(mm) | A3(mm) | A3*(mm) | H(mm) | 承载能力(kg) AXLE LOAD (kg) |
UTAS16OS3101 | 421 | 391 | 412 | 382 | 403 | 373 | 142 | 16000*3 |
UTAS16OS3102 | 446 | 416 | 437 | 407 | 428 | 398 | 167 | 16000*3 |
UTAS16OS3103 | 471 | 441 | 462 | 432 | 453 | 423 | 192 | 16000*3 |
UTAS16OS3104 | 496 | 466 | 487 | 457 | 478 | 448 | 217 | 16000*3 |
UTAS16OS3105 | 521 | 491 | 512 | 482 | 503 | 473 | 242 | 16000*3 |
UTAS16OS3106 | 546 | 516 | 537 | 507 | 528 | 498 | 267 | 16000*3 |
1) Hanger thickness: 4mm, 4.5mm, 6mm, 8mm or 10mm
2) King pin: 50mm, 60mm, 70mm
3) Suspension height: 130-350mm
4) Color: black/ red/orange/ by customer
5) Material: Q235B
6) Spring width: 75mm, 90mm, 100mm, 120mm
7) Axle spacing: 1310mm, 1360mm
8) No. Of spring piece/spring quantity is optional
9) Axle load is optional
10) Size: design as your requirement
11) Max payload: 55T for complete suspension
12) Axle beam: square/ round
13) Fishing: painting or galvanizing
14) Packing details: wooden tray or other ways according to your requirements
IMPORTANT REMARK: we can produce fully according with your samples and drawings.
PARAMETER
ONE AXLE TYPE
悬挂型号 ITEM | A(mm) | A*(mm) | 承载能力(kg) AXLE LOAD (kg) |
UTAS16OS1001 | 403 | 373 | 16000*1 |
UTAS16OS1002 | 428 | 398 | 16000*1 |
UTAS16OS1003 | 453 | 423 | 16000*1 |
UTAS16OS1004 | 478 | 448 | 16000*1 |
UTAS16OS1005 | 503 | 473 | 16000*1 |
TWO AXLE TYPE
悬挂型号 ITEM | A1(mm) | A1*(mm) | A2(mm) | A2*(mm) | H(mm) | 承载能力(kg) AXLE LOAD (kg) |
UTAS16OS2101 | 412 | 382 | 403 | 373 | 142 | 16000*2 |
UTAS16OS2102 | 437 | 407 | 428 | 398 | 167 | 16000*2 |
UTAS16OS2103 | 462 | 432 | 453 | 423 | 192 | 16000*2 |
UTAS16OS2104 | 487 | 457 | 478 | 448 | 217 | 16000*2 |
UTAS16OS2105 | 512 | 482 | 503 | 473 | 242 | 16000*2 |
UTAS16OS2106 | 627 | 597 | 618 | 588 | 357 | 16000*2 |
THREE AXLE TYPE
悬挂型号 ITEM | A1(mm) | A1*(mm) | A2(mm) | A2*(mm) | A3(mm) | A3*(mm) | H(mm) | 承载能力(kg) AXLE LOAD (kg) |
UTAS16OS3101 | 421 | 391 | 412 | 382 | 403 | 373 | 142 | 16000*3 |
UTAS16OS3102 | 446 | 416 | 437 | 407 | 428 | 398 | 167 | 16000*3 |
UTAS16OS3103 | 471 | 441 | 462 | 432 | 453 | 423 | 192 | 16000*3 |
UTAS16OS3104 | 496 | 466 | 487 | 457 | 478 | 448 | 217 | 16000*3 |
UTAS16OS3105 | 521 | 491 | 512 | 482 | 503 | 473 | 242 | 16000*3 |
UTAS16OS3106 | 546 | 516 | 537 | 507 | 528 | 498 | 267 | 16000*3 |
