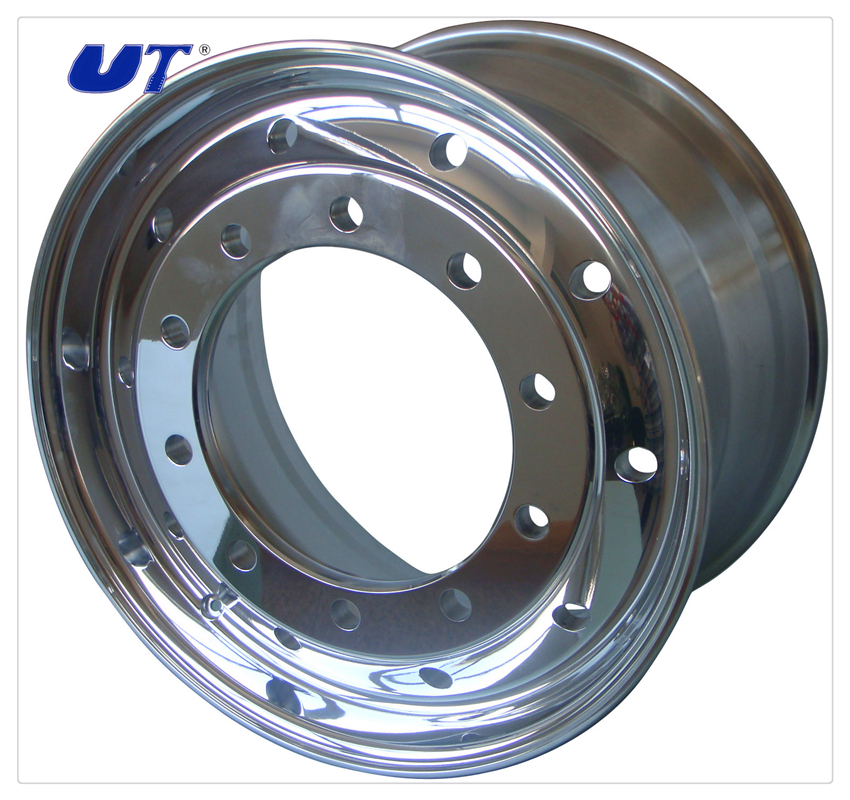

Aluminum Wheel Rim

Advantage:
1. Cut down weight of vehicle by about 250kgs
2. 95 percent of the aluminum used in a vehicle is recycled
3. Using aluminum to replace steel saves 22.9 Kg of Co2 per Kg of aluminum

Availability:

Quantity:


Inquire Add to Basket

Model: 22.5x8.25
Brand: UT
Code: UTA001

Product Description

FEATURE

Aluminum Wheel Rims

Aluminum wheel rims for truck and semi-trailer

Advantage:

1. Cut down weight of vehicle by about 250kgs

2. 95 percent of the aluminum used in a vehicle is recycled

3. Using aluminum to replace steel saves 22.9 Kg of Co2 per Kg of aluminum

PARAMETER

Item No.	No Studs	Stud Dia	PCD		CBD		ET		Weight(kg)		Max Load(KG)
22.5x8.25
UTA-001	10	26.75	285.75		220		144.5/168.5		23.8		3550
UTA-002	10	32.5	335		281.2		144.5/168.5		21.8		3550
UTA-003	10	26.75	335		281.2		144.5/168.5		22.16		3550
UTA-004	10	32.5R22	285.75		221		144.5/168.5		23.43		3550
UTA-005	10	26	335		281.2		144.5/168.5		22.5		3550
UTA-006	10	26	285.75		220		144.5/168.5		24		3550
UTA-007	10	26	285.75		221		144.5/168.5		24		3550
17.5x6.75
UTA-008	6	26.75	245		202		120 / 141		13.88		2500
UTA-009	6	26	245		202		120 / 141		13.94		2500
UTA-010	6	26	225		176		120 / 141		14.38		2500
22.5x7.5
UTA-011	10	32.5	335		281.2		138 / 162		22.5		3550
UTA-012	10	26.75	285.75		220.1		138 / 160		23		3550
UTA-013	10	26	335		281.2		138 / 160		22.42		3550
22.5x9.00
UTA-014	10	26	335	281.2		152 / 177		24.56		4125
UTA-015	10	26.75	335	281.2		152 / 177		24.3		4125
UTA-016	10	32.5	335	281.2		152 / 177		24		4125
UTA-017	10	32.5R22	335	281.2		152 / 177		23.4		4125
UTA-018	10	26	285.75	221		152 / 177		25		4125
UTA-019	10	26.75	285.75	220		152 / 177		25		4125
22.5x11.75
UTA-020	10	26.75	335		281.2		120		25.41		4500
