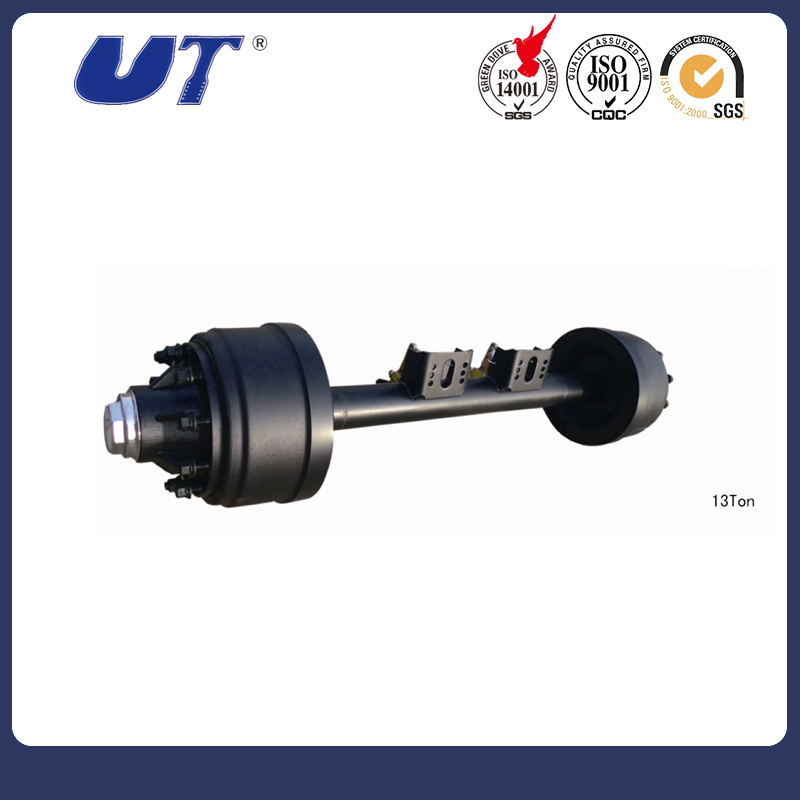

FEATURE
1.Special heat-treat alloy steel axle beam, it has the virtues of good synthetic performance, strong load ability and lower self weight.
2.Wholly heat treatment for high quality alloy forged solid spindle, providing superior fatigue capability.
3.High performance asbestos free brake linings extend service life.
4.Camshaft matching with special seals, can ensure no entry of the grease into the brake drum thus axle will be more safety.
5.Mobil grease lengthens maintenance-free time.
6.Bearing is the domestic top brand, with the advantages of over loading capability, high rotating speed,good intensity, abrade resistant and heat resistant.
7.Wheel nut is made of alloy steel with high strength, good tensile and bending resistance,not easy to break.
8.Key components of axle are processed by digital equipment, complied with the international standard. Special requirements can also be meet as per client’s request.
PARAMETER
Model | Capacity | Brake | Track | Distance of Spring | Distance of Brake Chamber | Axle tube | Wheel Fixing | Bearing | Total Length | Weight | Recommend wheel | ||
T | mm | mm | mm | mm | mm | Stud | P.C.D. | C.B.D. | mm | kg | |||
13 | 420x200 | 1816 | ≥916 | 356 |
| 10-M22x1.5 ISO | 335 | 281 | 518445/518445 | 2176 | 360 | 7.5-20 | |
UTA13SA11B3 | 13 | 420x200 | 1816 | ≥916 | 356 |
| 10-M22x1.5 ISO | 285.75 | 221 | 518445/518445 | 2176 | 360 | 7.5-20 |
UTA13SA14B3 | 13 | 420x200 | 1816 | ≥916 | 356 |
| 8-M20x1.5 JAP | 285 | 221 | 518445/518445 | 2176 | 360 | 7.5-20 |
UTA13SA17B3 | 13 | 420x200 | 1816 | ≥916 | 356 |
| 10x7/8”-11 BSF | 335 | 281 | 518445/518445 | 2176 | 360 | 7.5-20 |
UTA16SA12B4 | 16 | 420x220 | 1850 | ≥940 | 350 |
| 10-M22x1.5 ISO | 335 | 281 | 518445/220149 | 2200 | 400 | 8.0-20 |
UTA13RB11B2 | 13 | 420x180 | 2121 | - | 680 |
19 | 10-M22x1.5 ISO | 285.75 | 221 | 518445/220149 | 2461 | 380 | 7.5-20 |
