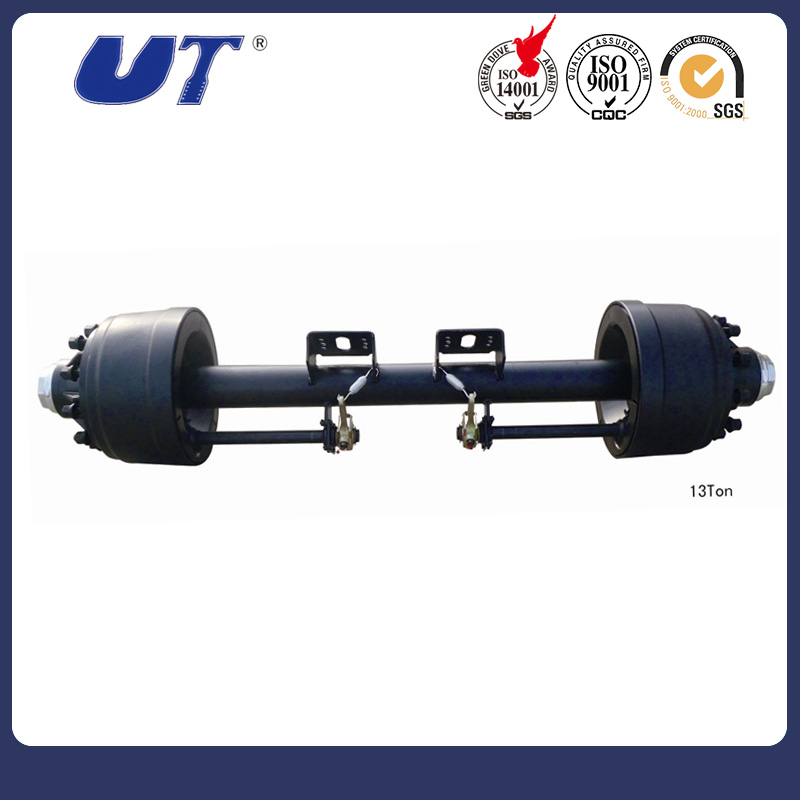

American Type Axle- Inboard Series

Original:China
Color: Black
Capacity:13/16 tons
Track:1840mm/1850mm

Availability:

Quantity:


Inquire Add to Basket

Model: UTA13RA03B2
Brand: UT
Code: 1-002

Product Description

FEATURE

1.Special heat-treat alloy steel axle beam, it has the virtues of good synthetic performance, strong load ability and lower self weight.

2.Wholly heat treatment for high quality alloy forged solid spindle, providing superior fatigue capability.

3.High performance asbestos free brake linings extend service life.

4.Camshaft matching with special seals, can ensure no entry of the grease into the brake drum thus axle will be more safety.

5.Mobil grease lengthens maintenance-free time.

6.Bearing is the domestic top brand, with the advantages of over loading capability, high rotating speed,good intensity, abrade resistant and heat resistant.

7.Wheel nut is made of alloy steel with high strength, good tensile and bending resistance,not easy to break.

8.Key components of axle are processed by digital equipment, complied with the international standard. Special requirements can also be meet as per client’s request.

PARAMETER

Model	Capacity	Brake	Track	Distance of Spring	Distance of Brake Chamber	Axle tube	Wheel Fixing			Bearing	Total Length	Weight	Recommend wheel
Model	T	mm	mm	mm	mm	mm	Stud	P.C.D.	C.B.D.		mm	kg
UTA13RA03B2	13	420x180	1840	≥930	390	127 x19	10-M22x1.5 ISO	335	281	518445/10	2185	372	7.5-20
UTA13RA03B3	13	420x200	1840	≥930	370	127 x19	10-M22x1.5 ISO	335	281	518445/10	2185	385	7.5-20
UTA13RA02B2	13	420x180	1840	≥930	390	127 x19	10-M22x1.5 ISO	285.75	221	518445/10	2185	372	7.5-20
UTA13RA07B2	13	420x180	1840	≥930	390	127 x19	8-M20x1.5 JAP	285	221	518445/10	2185	372	7.5-20
UTA13SB03B2	13	420x180	1840	≥930	390	150	10-M22x1.5 ISO	335	281	518445/10	2185	372	7.5-20
UTA13SB03B3	13	420x200	1840	≥930	370	150	10-M22x1.5 ISO	335	281	518445/10	2185	385	7.5-20
UTA13SB02B2	13	420x180	1840	≥930	390	150	10-M22x1.5 ISO	285.75	221	518445/10	2185	372	7.5-20
UTA13SB07B2	13	420x180	1840	≥930	390	150	8-M20x1.5 JAP	285	221	518445/10	2185	372	7.5-20
UTA16RA03B4	16	420x220	1850	≥940	360	127 x25	10-M22x1.5 ISO	335	281	518445/220149	2205	430	20”
UTA16SB03B4	16	420x220	1850	≥940	360	150	10-M22x1.5 ISO	335	281	518445/220149	2205	430	20”
