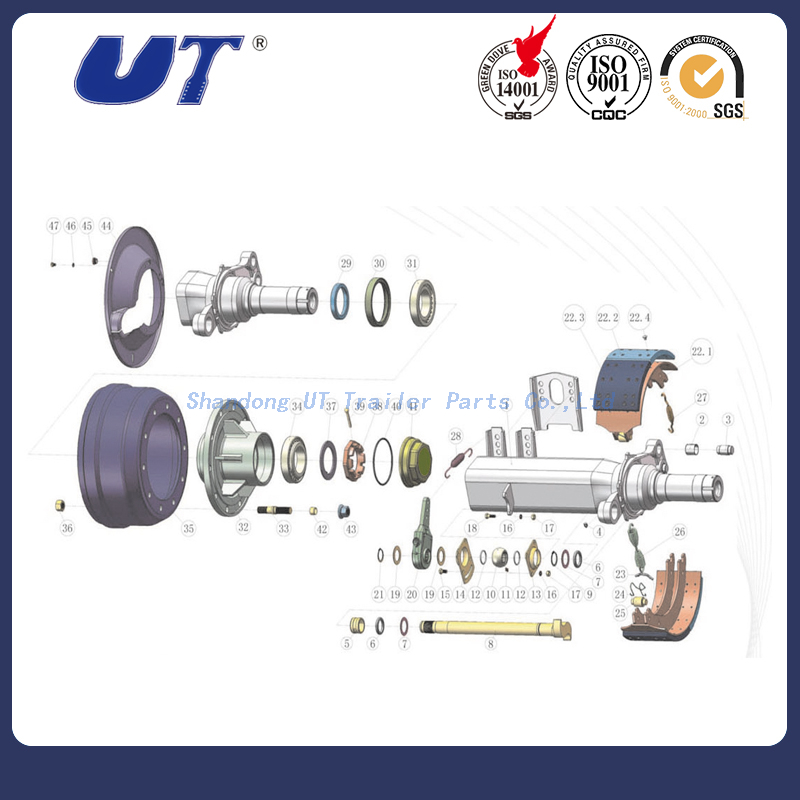

Brake Assembly

1

Axle Welding Assembly

2

Brake shoe Fix Pin

3

Inner Hexagon Bolt

4

Camshaft Bush

5

O Ring

6

Thrust Ring

7

Cir clip

8

Camshaft LH

8

Camshaft RH

9

Nylon Ring

10

Big-dust Wrapper

11

Cir clip

12

Middle-dust Wrapper

13

Spherical Bearing

14

Cap 2

15

Grease Nipple

16

Bearing Camshaft Bush 1

17

Bearing Support Plate 2

18

Bolt

19

Washer

20

Spring Washer

21

Nut

22

Slack Adjuster

23

Lock nut Washer

24

Camshaft Lock nut

25

Cap 1

26

Grease Nipple

27

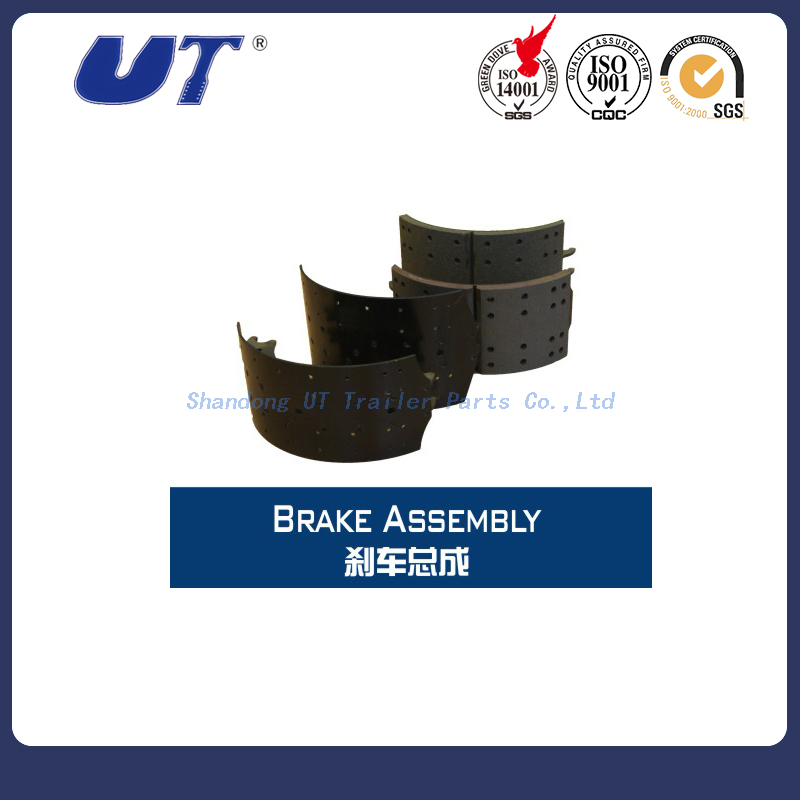

Brake Shoe Assembly

27.1

Brake Shoe Bracket

27.2

Brake Lining

27.3

Tubular Rivet

28

Brake Roller

29

Roll Pin Bush
