PARAMETER

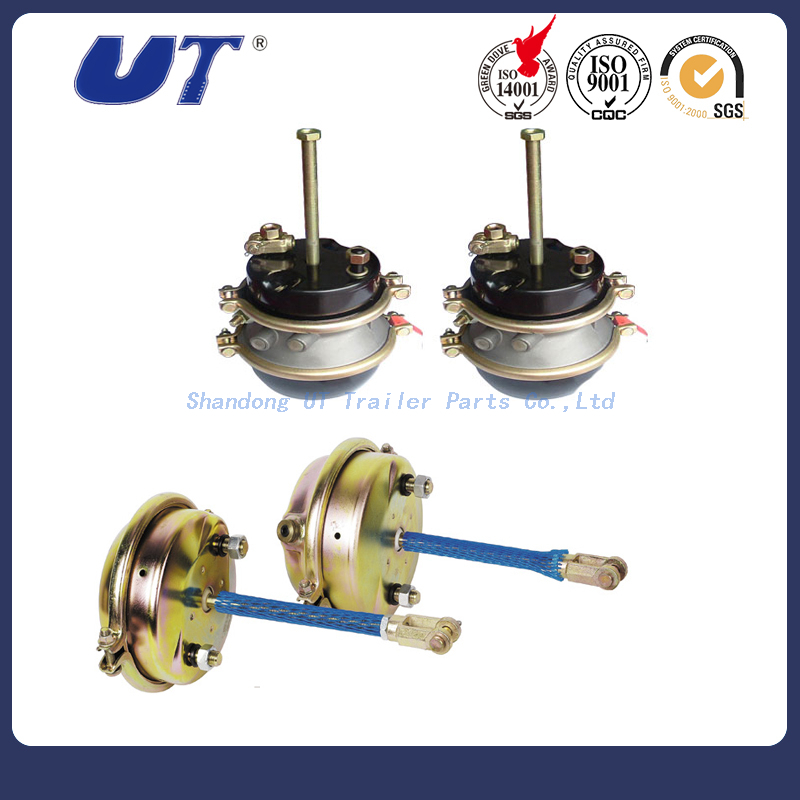

Single Air-chamber
Type | Stroke | R1 | R2 | L1 | L2 | Pushord Thread Length L4 | Pushord Threak | Air Inlet Thread | Mounting Bolt Thread | Mounting Lnluded Angle | Weight | |
T-24 | 64 | 116 | 93 | 110 | 212 | 207 | 5/8" - 18UNF2A | 3/8" - NPTF | 5/8" - 11UNC2A | 45° | 4 Kg | |
T-30 | 64 | 130 | 106 | 110 | 255 | 255 | 5/8" - 18UNF2A | 3/8" - NPTF | 5/8" - 11UNC2A | 45° | 4.6 Kg | |
Type | Chamber Volume （Litre） | Service Chamber Force Output（KN） （Stroke：38mm） | Diaphragm Acreage | |||||||||
（Measure Pressure：700KPa） | 400KPa | 700KPa | Working Area | Dia. At Clamp Point（mm） | ||||||||
（SQ cm） | ||||||||||||
T-24 | 1.08 | 5.58 | 9.8 | 141 | 161 | |||||||
T-30 | 1.48 | 7.3 | 12.8 | 180 | 181 | |||||||
T24,T20,T16,T12 are available.
Double Air-chamber
Type | Stroke | R1 | R2 | L1 | L2 | Pushord Thread Length L4 | Pushrod Thread | Air Inlet Thread | Mounting Bolt Thread | Munting Inluded Angle | Weight |
T-24/24 | 64 | 116 | 93 | 224 | 270 | 207 | 5/8" - 18UNF2A | 3/8" - NPTF | 5/8" - 11UNC2A | 45° | 8 Kg |
T-30/30 | 64 | 130 | 106 | 238 | 255 | 255 | 5/8" - 18UNF2A | 3/8" - NPTF | 5/8" - 11UNC2A | 45° | 8.8 Kg |
T-24/30 | 64 | 116 | 93 | 230 | 212 | 207 | 5/8" - 18UNF2A | 3/8" - NPTF | 5/8" - 11UNC2A | 90° | 8 Kg |
Type | Chamber Volume（Litre） | Measurs Pressure：700KPa | Parking Chamber Hold-off Pressure（Kpa) | Parking Chamber Force Output（KN）（Stroke：38mm） | |||||||
Service Chamber | Parking Chamber | ||||||||||
T-24 | 1.04 | 1.16 | 537 | 4.98 | |||||||
T-30 | 1.32 | 1.78 | 500 | 6.11 | |||||||
