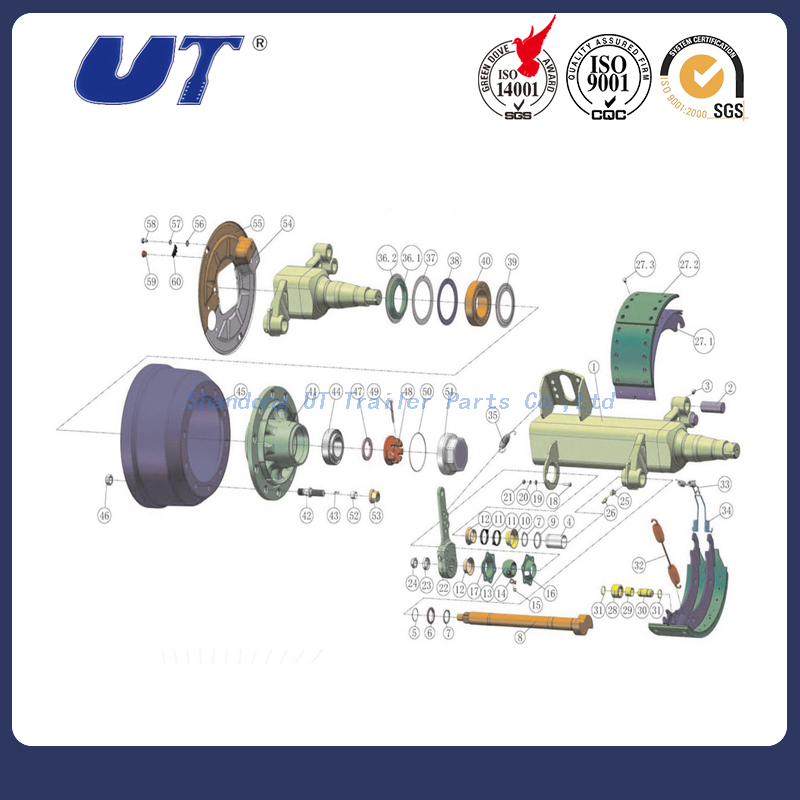

NO. | Name |
30 | Camshaft Roller |
31 | Ring |
32 | Return Spring |
33 | Retaining Spring 1 |
34 | Retaining Spring 2 |

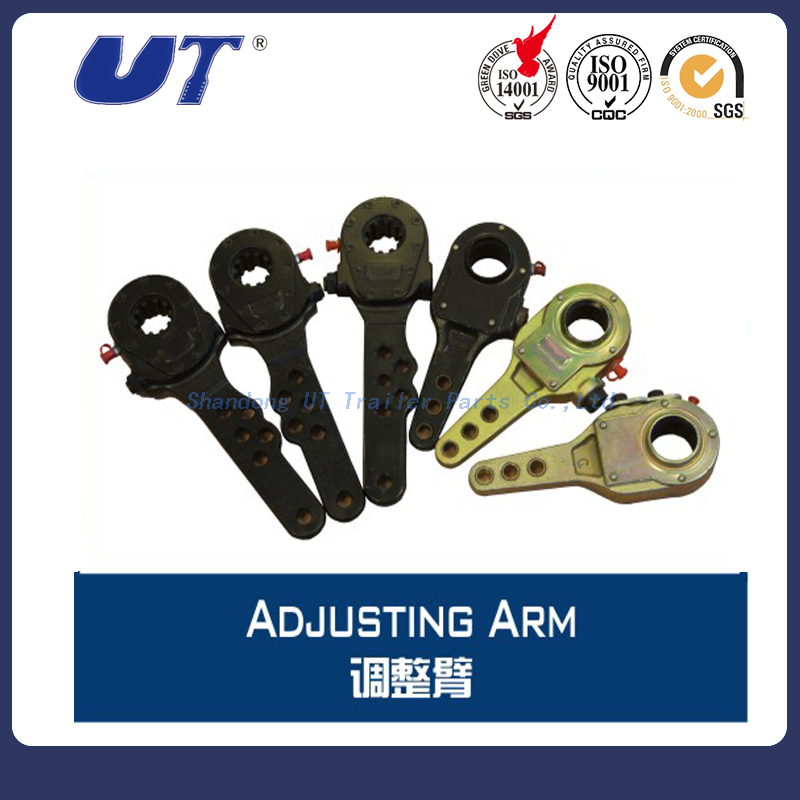

35 | Slack Adjuster Spring |
36 | Conical Ring Assembly |
36.1 | Conical Ring |
36.2 | Conical Ring Guard Collar |
37 | Big Hub Sealing |
38 | Small Hub Sealing |
39 | Bearing Oil Sealing |
40 | Bearing |
41 | Hub |
42 | Wheel Stud |
43 | Pin |
44 | Bearing |
45 | Brake Drum |
46 | Lock nut |
47 | Lock Washer |
48 | Axle End Lock nut |
49 | Split Pin |
50 | O Ring |
51 | Hub Cap |
52 | Wheel Stud Elastic Sleeve |
53 | Wheel Nut |

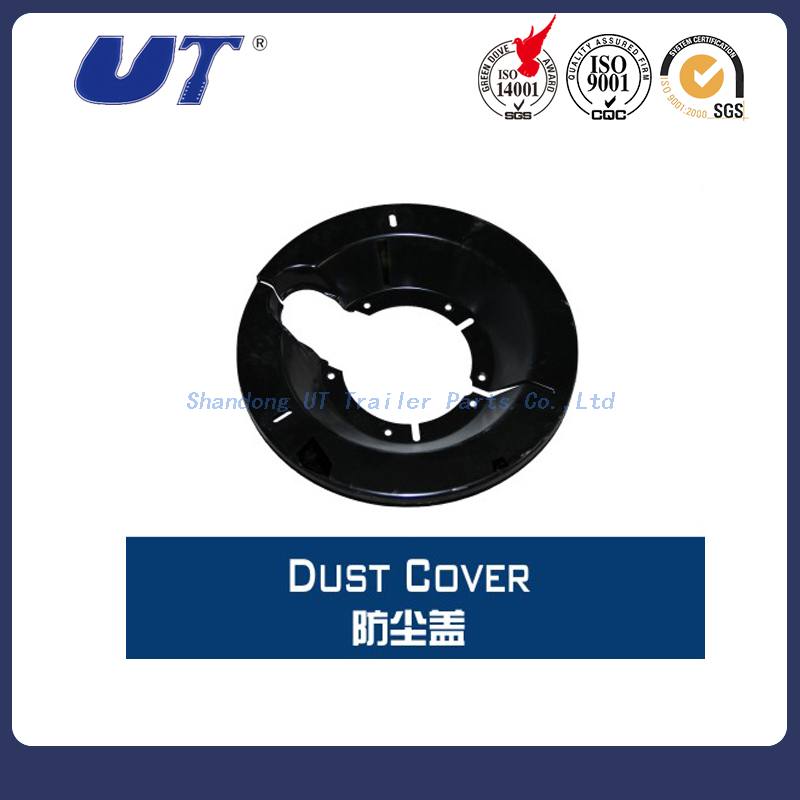

54 | Dust Cover(left bottom) |
54 | Dust Cover(right bottom) |
55 | Dust Cover(left top) |
55 | Dust Cover(right top) |
56 | Washer |
57 | Spring Washer |
58 | Bolt |
59 | Dust Ring |
60 | Plug |
