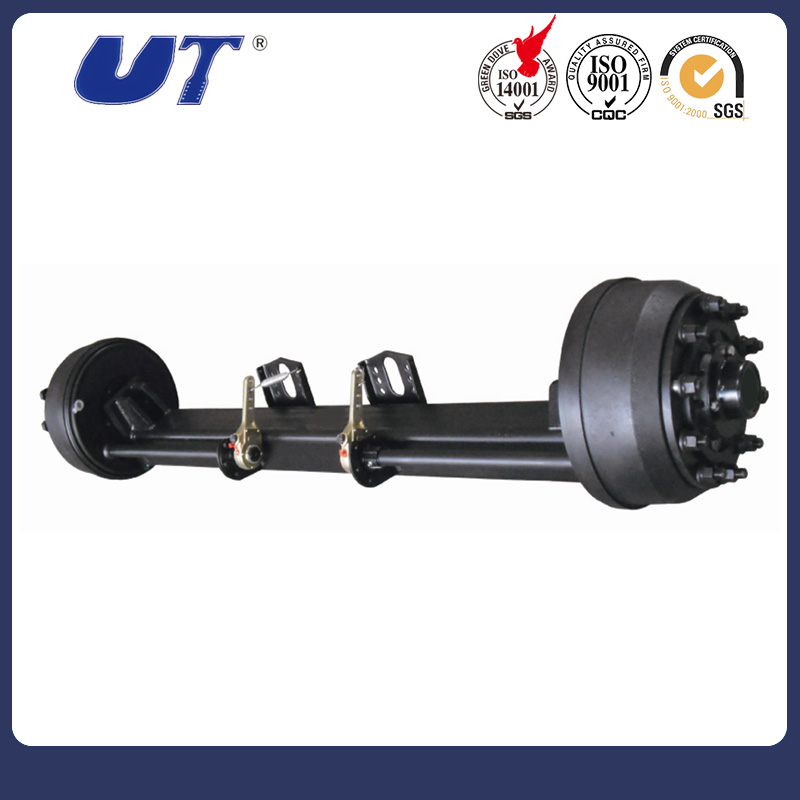

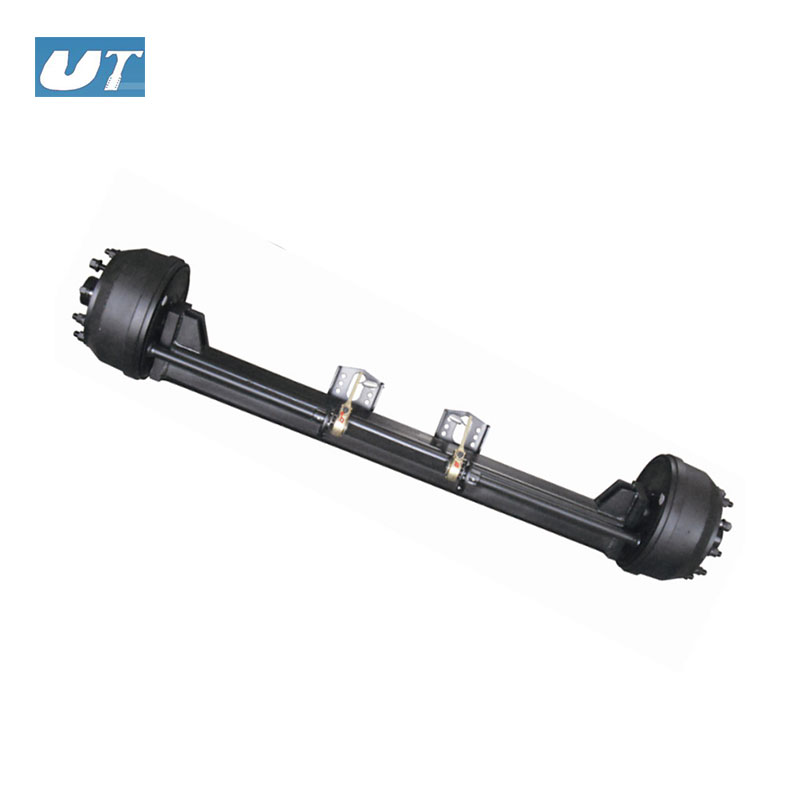

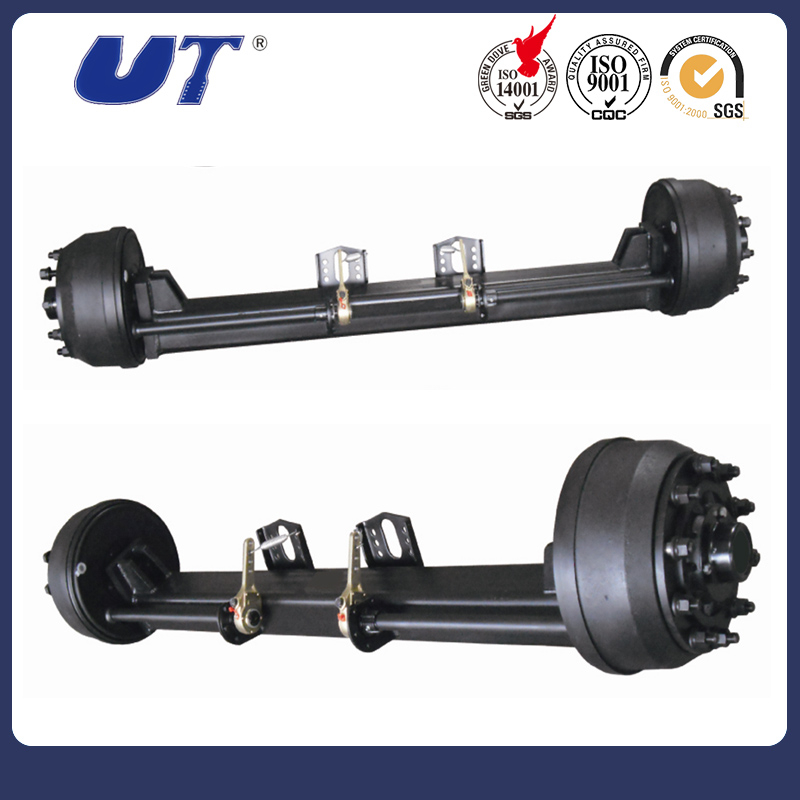

Concave Axle

Concave axle,semi trailer axle

Quantity:
  • UTC10SB03S1
  • UT
  • 5-001

FEATURE

1.Special heat-treat alloy steel axle beam, it has the virtues of good synthetic performance, strong load ability and lower self weight.

2.Wholly heat treatment for high quality alloy forged solid spindle, providing superior fatigue capability.

3.High performance asbestos free brake linings extend service life.

4.Camshaft matching with special seals, can ensure no entry of the grease into the brake drum thus axle will be more safety.

5.Mobil grease lengthens maintenance-free time.

6.Bearing is the domestic top brand, with the advantages of over loading capability, high rotating speed,good intensity, abrade resistant and heat resistant.

7.Wheel nut is made of alloy steel with high strength, good tensile and bending resistance,not easy to break.

8.Key components of axle are processed by digital equipment, complied with the international standard. Special requirements can also be meet as per clients request.


PARAMETER





Model

Capacity

Brake

Track

Distance of Spring

Distance of Brake Chamber

Axle tube

Wheel Fixing

Bearing

Total Length

Recommend wheel

T

mm

mm

mm

mm

mm

Stud

P.C.D.

C.B.D.


mm


UTC10SB03S1

10

420x152

2385

950

450

  150

x12

10-M22x1.5 ISO

335

281

33213/

218248

≈2585

 7.5-20

UTC12SB03B2

12

420x180

2385

950

450

  150

x114

10-M22x1.5 ISO

335

281

33213/

218248

≈2585

7.5-20
