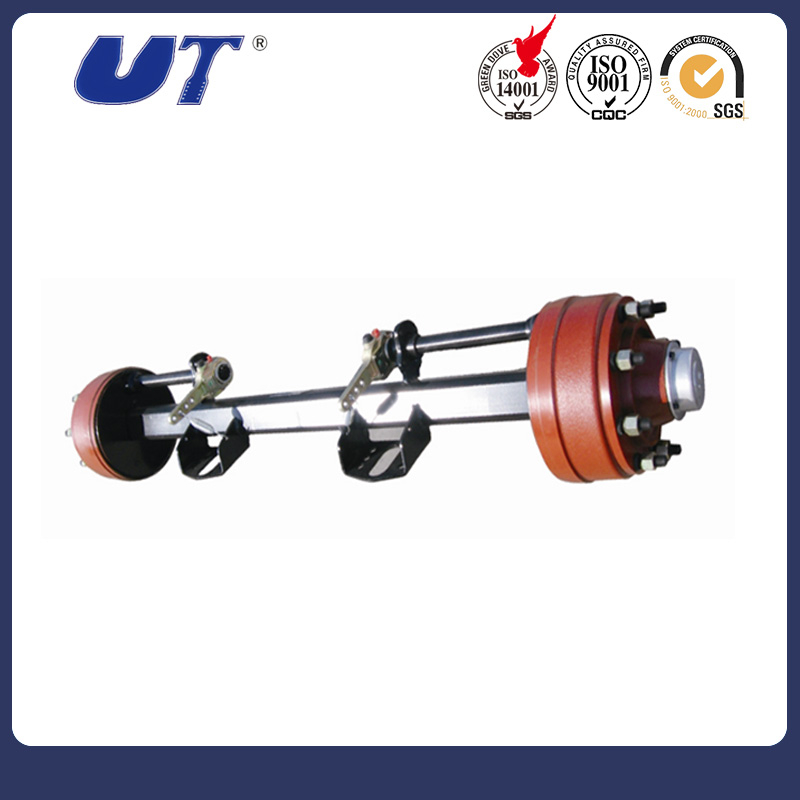

Farm Axle--Brake Series

axle for agricultural trailer,Farm axle with or without brake,square tube,solid tube

Quantity:
  • UTF6S60B
  • UT
  • 4-001

FEATURE

1.Special heat-treat alloy steel axle beam, it has the virtues of good synthetic performance, strong load ability and lower self weight.

2.Wholly heat treatment for high quality alloy forged solid spindle, providing superior fatigue capability.

3.High performance asbestos free brake linings extend service life.

4.Camshaft matching with special seals, can ensure no entry of the grease into the brake drum thus axle will be more safety.

5.Mobil grease lengthens maintenance-free time.

6.Bearing is the domestic top brand, with the advantages of over loading capability, high rotating speed,good intensity, abrade resistant and heat resistant.

7.Wheel nut is made of alloy steel with high strength, good tensile and bending resistance,not easy to break.

8.Key components of axle are processed by digital equipment, complied with the international standard. Special requirements can also be meet as per clients request.


PARAMETER



   Model

Capacity

Brake

Track

Axle tube

Wheel Fixing

Bearing

DIM D


T

mm

mm

mm

Stud

P.C.D.

C.B.D.


mm

 UTF6S60B

6

300x100

1800

Solid 60x60

6-M20x1.5

275

220

32211/ 33010

587.5

UTF8S80B

8

300x100

1800

Solid 80x80

8-M20x1.5

275

220

32212/32215

587.5

UTF9S90B

9

300x100

1800

Solid 90x90

8-M20x1.5

275

220

32211/33014

587.5
