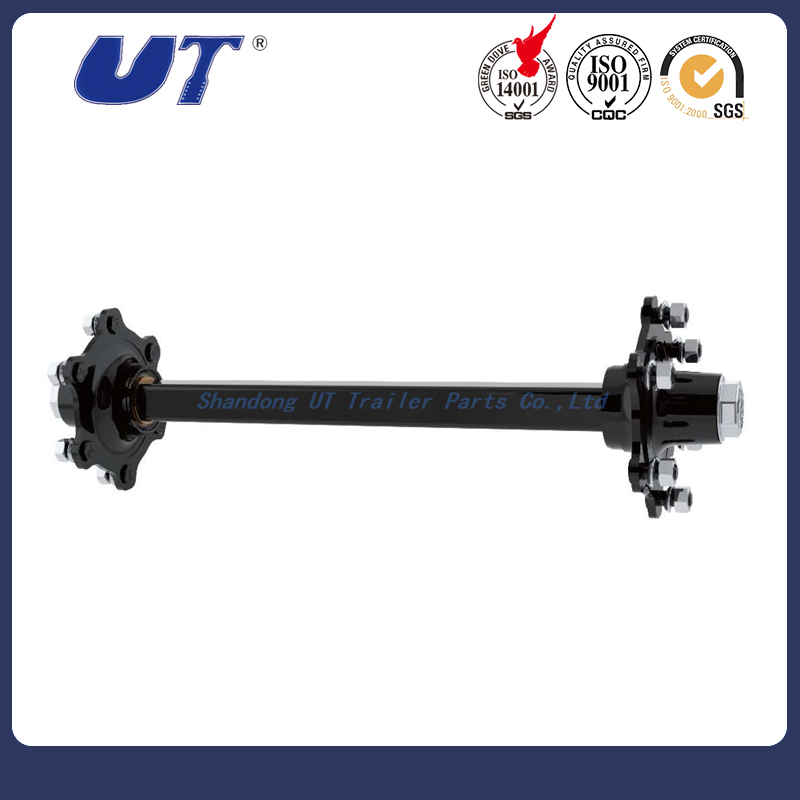

Farm Axle--Unbrake Series

axle for agricultural trailer,Farm axle without brake,square tube,solid tube

Quantity:
  • UTF6S60UB
  • UT
  • 4-002

FEATURE

1.Special heat-treat alloy steel axle beam, it has the virtues of good synthetic performance, strong load ability and lower self weight.

2.Wholly heat treatment for high quality alloy forged solid spindle, providing superior fatigue capability.

3.High performance asbestos free brake linings extend service life.

4.Camshaft matching with special seals, can ensure no entry of the grease into the brake drum thus axle will be more safety.

5.Mobil grease lengthens maintenance-free time.

6.Bearing is the domestic top brand, with the advantages of over loading capability, high rotating speed,good intensity, abrade resistant and heat resistant.

7.Wheel nut is made of alloy steel with high strength, good tensile and bending resistance,not easy to break.

8.Key components of axle are processed by digital equipment, complied with the international standard. Special requirements can also be meet as per clients request.


PARAMETER


    Model

Capacity

Track

Axle tube

Wheel Fixing

Bearing

Total Length


T

mm

mm

Stud

P.C.D.

C.B.D.


mm

UTF6S60UB

6

1840

  60

6-M18x1.5

205

160

30211/30208

2027

UTF7S70UB

7

1840

  70

6-M18x1.5

205

  160

30213/32210

2078

UTF8S80UB

8

1840

  80

8-M18x1.5

275

220

32212/32215

2092

UTF9S90UB

9

1840

  90

10-M18x1.5

335

281

32213/32216

2104

UTF10S100UB

10

1840

  100

10-M18x1.5

335

281

32214/32217

2104

UTF12R127UB

12

1840

  127

10-M18x1.5

335

281

33118/33213

2156
