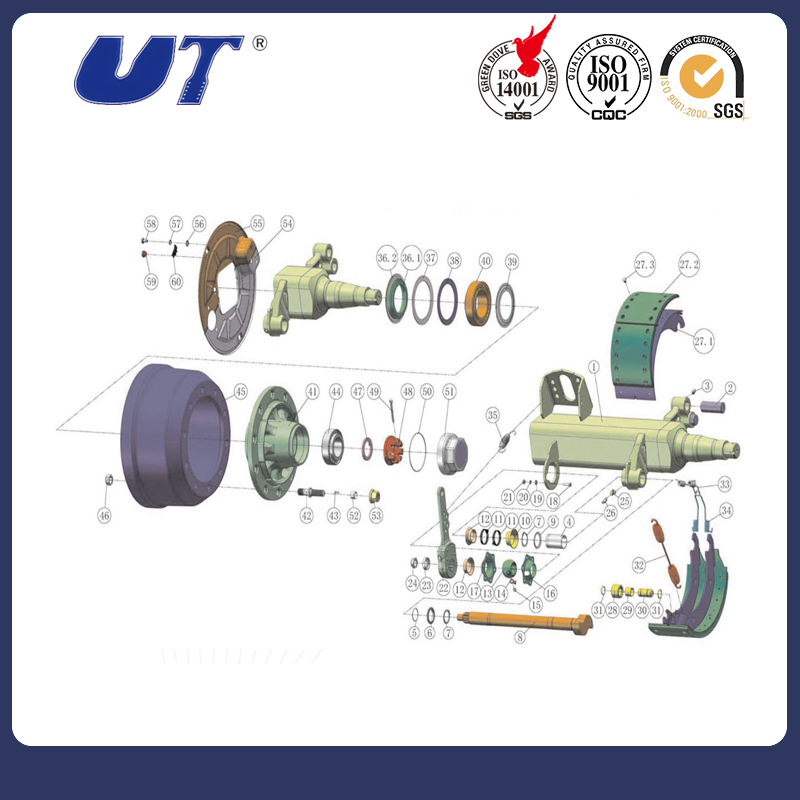

Germany Axle Spare Parts

1

Axle Welding Assembly

1

2

Brake shoe Fix Pin

4

3

Inner Hexagon Bolt

4

4

Camshaft Bush

2

5

O Ring

2

6

Thrust Ring

2

7

Cir clip

4

8

Camshaft LH

1

8

Camshaft RH

1

9

Nylon Ring

2

10

Big-dust Wrapper

2

11

Cir clip

4

12

Middle-dust Wrapper

4

13

Spherical Bearing

2

14

Cap 2

2

15

Grease Nipple

2

16

Bearing Camshaft Bush 1

2

17

Bearing Support Plate 2

2

18

Bolt

12

19

Washer

12

20

Spring Washer

12

21

Nut

12

22

Slack Adjuster

2

23

Lock nut Washer

2

24

Camshaft Lock nut

2

25

Cap 1

2

26

Grease Nipple

2

27

Brake Shoe Assembly

4

27.1

Brake Shoe Bracket

4

27.2

Brake Lining

8

27.3

Tubular Rivet

80

28

Brake Roller

4

29

Roll Pin Bush

4

30

Camshaft Roller

4

31

Ring

8

32

Return Spring

2

33

Retaining Spring 1

2

34

Retaining Spring 2

2

35

Slack Adjuster Spring

2

36

Conical Ring Assembly

2

36.1

Conical Ring

2

36.2

Conical Ring Guard Collar

2

37

Big Hub Sealing

2

38

Small Hub Sealing

2

39

Bearing Oil Sealing

2

40

Bearing

2

41

Hub

2

42

Wheel Stud

20

43

Pin

20

44

Bearing

2

45

Brake Drum

2

46

Lock nut

20

47

Lock Washer

2

48

Axle End Lock nut

2

49

Split Pin

2

50

O Ring

2

51

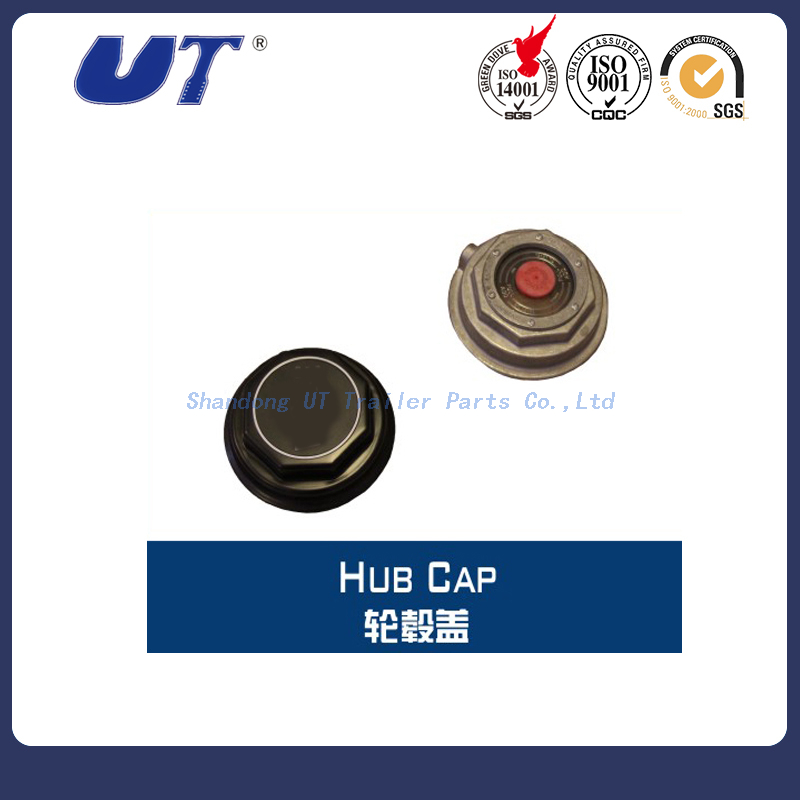

Hub Cap

2

52

Wheel Stud Elastic Sleeve

2

53

Wheel Nut

20

54

Dust Cover(left bottom)

1

54

Dust Cover(right bottom)

1

55

Dust Cover(left top)

1

55

Dust Cover(right top)

1

56

Washer

8

57

Spring Washer

8

58

Bolt

8

59

Dust Ring

2

60

Plug

4
