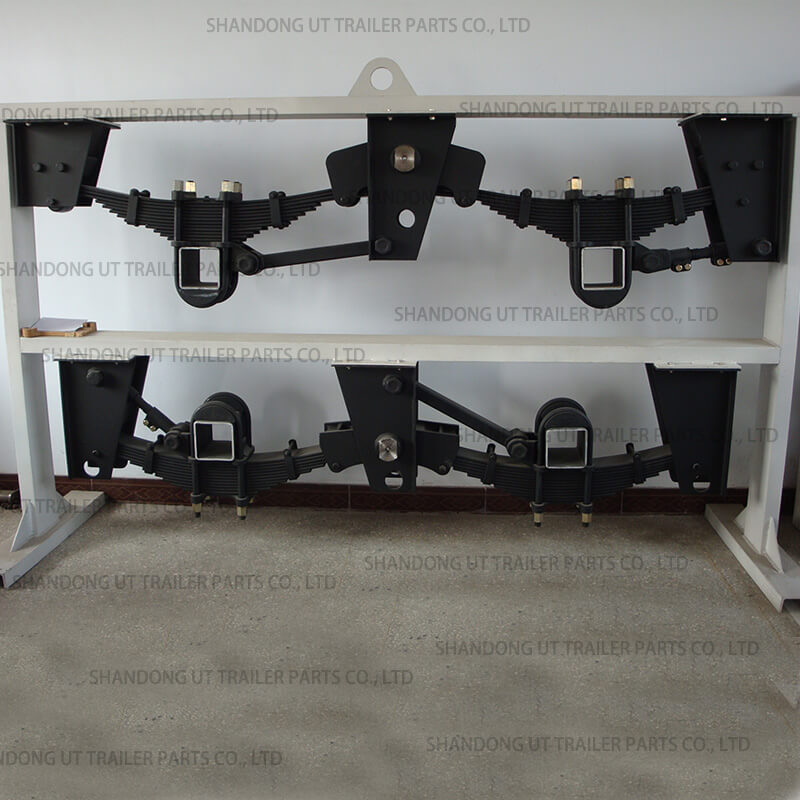

FEATURE
1) Hanger thickness: 4mm, 4.5mm, 6mm, 8mm or 10mm
2) King pin: 50mm, 60mm, 70mm
3) Suspension height: 130-350mm
4) Color: black/ red/orange/ by customer
5) Material: Q235B
6) Spring width: 75mm, 90mm, 100mm, 120mm
7) Axle spacing: 1310mm, 1360mm
8) No. Of spring piece/spring quantity is optional
9) Axle load is optional
10) Size: design as your requirement
11) Max payload: 55T for complete suspension
12) Axle beam: square/ round
13) Fishing: painting or galvanizing
14) Packing details: wooden tray or other ways according to your requirements
IMPORTANT REMARK: we can produce fully according with your samples and drawings.

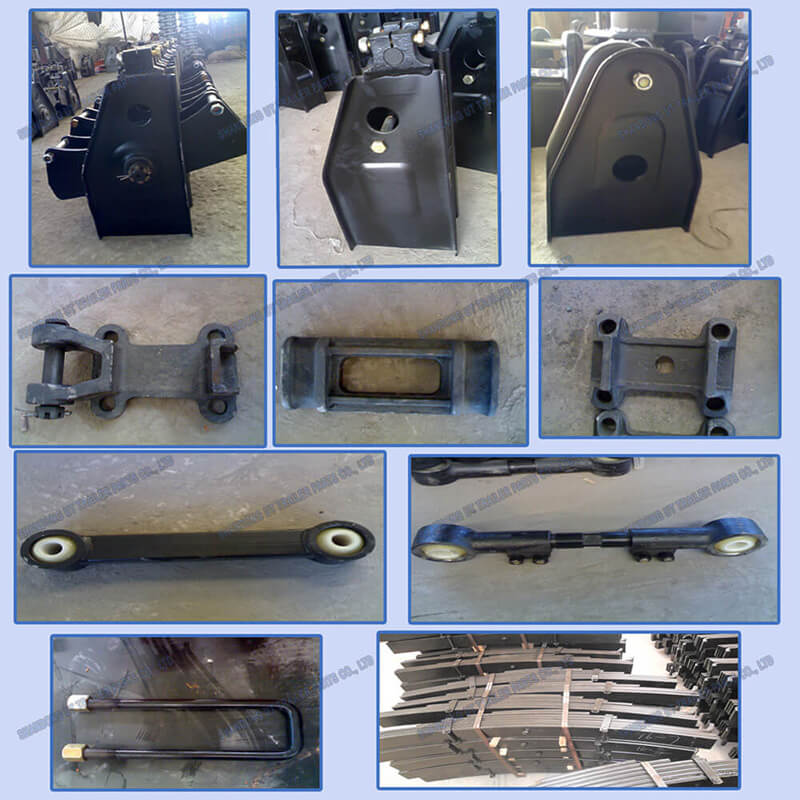

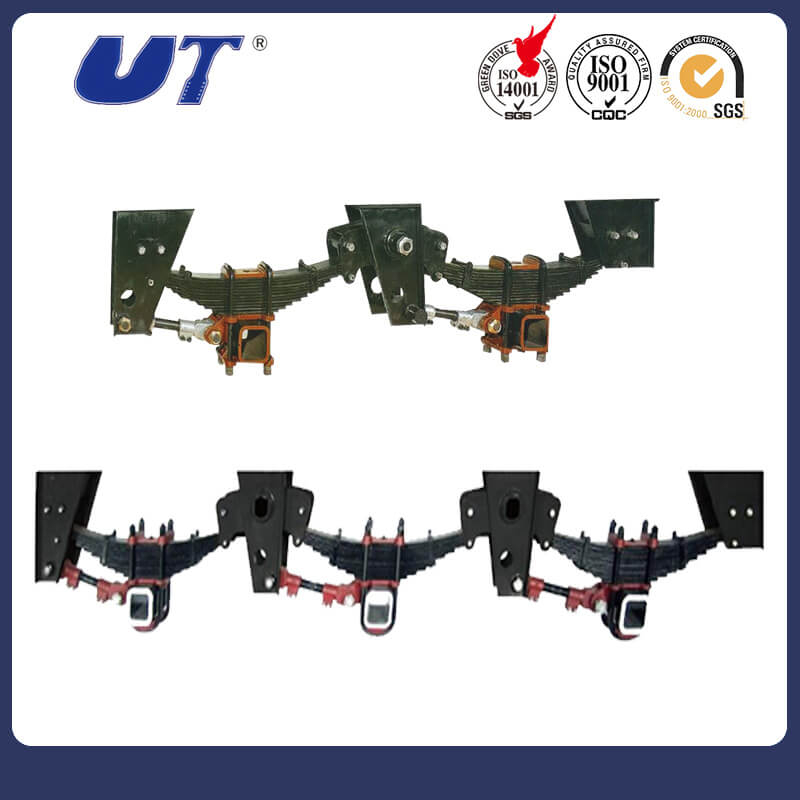

Following suspensions are available:
1) Single point suspension
2) 2-axle suspension
3) 3-axle suspension
4) 4-axle suspension
Following axles are waiting for you to choose:
1) 11 ton capacity axle
2) 12 ton capacity axle
3) 13 ton capacity axle
4) 14 ton capacity axle
5) 16 ton capacity axle
PARAMETER

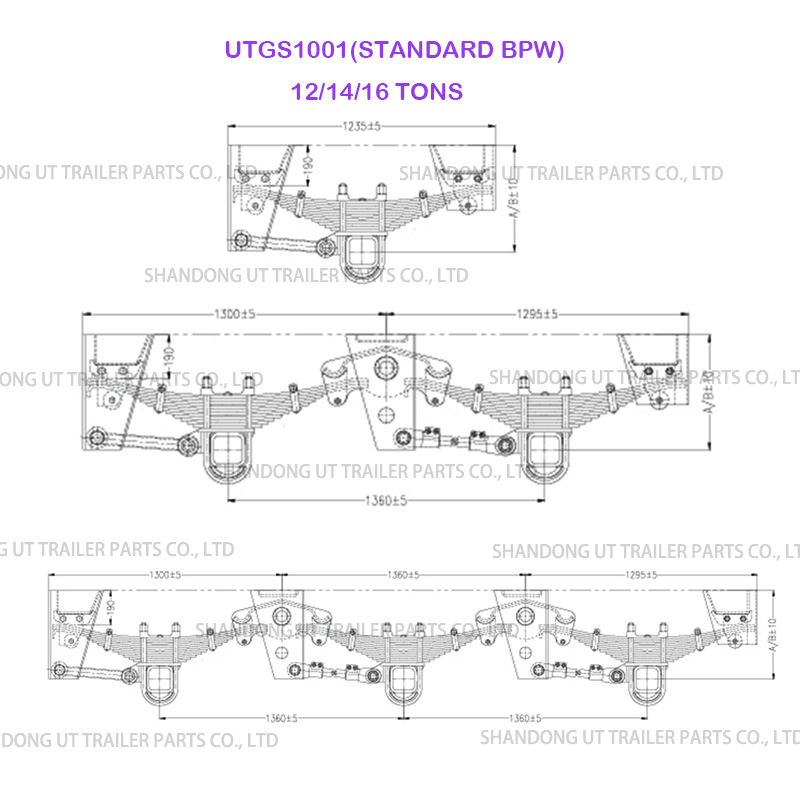

悬挂型号 Suspension Model | 规格 Size | 车轴 Axle type | H(mm) Mount Height | 轴距(mm) Wheel base | 板簧 Leaf Spring | 载重(ton) Capacity | A空载(mm) Empty Load | B满载(mm) Full Load |
UTGS1001 01 | 单轴 Single Axle | □150x150 | 190 | - | 100mmx12mmx11pcsx1170mm | 12x1 | 485 | 455 |
100mmx12mmx12pcsx1170mm | 14x1 | 497 | 467 | |||||
100mmx12mmx14pcsx1170mm | 16x1 | 521 | 492 | |||||
UTGS1001 02 | 双轴 Tandem Axle | □150x150 | 190 | 1360 | 100mmx12mmx11pcsx1170mm | 12x2 | 485 | 455 |
100mmx12mmx12pcsx1170mm | 14x2 | 497 | 467 | |||||
100mmx12mmx14pcsx1170mm | 16x2 | 521 | 492 | |||||
UTGS1001 03 | 三轴 Tri-axle | □150x150 | 190 | 1360 | 100mmx12mmx11pcsx1170mm | 12x3 | 485 | 455 |
100mmx12mmx12pcsx1170mm | 14x3 | 497 | 467 | |||||
100mmx12mmx14pcsx1170mm | 16x3 | 521 | 492 |
