FEATURE
Landing gear for semi-trailers, full trailers and trucks
Operation: both Single-Side Operation and Double-Side Operation type.
Gearbox type: both Gearbox inside and Gearbox outside type
Sand shoe: T-Shoe, Casting T-Shoe, S-Shoe, R-Shoe and A-Shoe.
Capacity: 5ton, 8ton, 15ton, 20ton,25ton, 28ton, 30ton and 35ton.
Design: Common type, Similar to FUWA, JOST, HOLLAND,YORK etc
Production Capacity: 3000 pairs per month
Package: By pallet, By wooden case or as your requirement
Main Market: South-east Asia, South America, Africa, Australia, Russia, Middle East, etc
PARAMETER

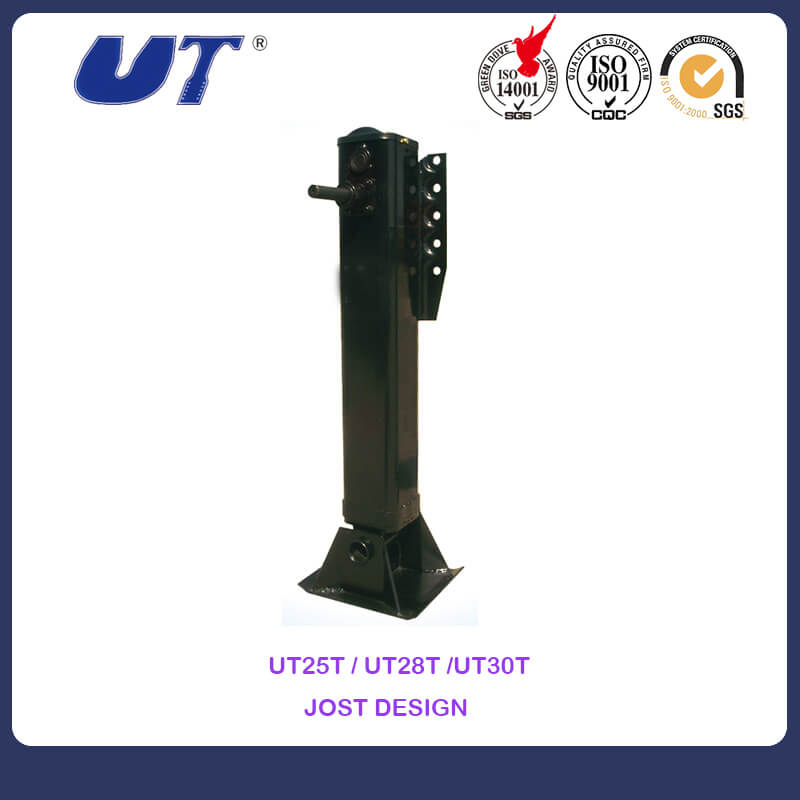

Model Number | UT25T | UT28T | UT30T |
Static Load Capacity(T) | 80 | 80 | 80 |
Lifting Capacity(T) | 25 | 28 | 30 |
High Gear(mm) | 6 | 7.5 | 7.5 |
Low Gear(mm) | 0.67 | 0.83 | 0.71 |
Travel Max(mm) | 14″17″19″ | 14″17″19″ | 14″17″19″ |
Assembly height(mm) | 713 789 840 | 713 789 840 | 713 789 840 |
Standard Weight(kg) | 98 104 108 | 100 106 110 | 106 112 116 |

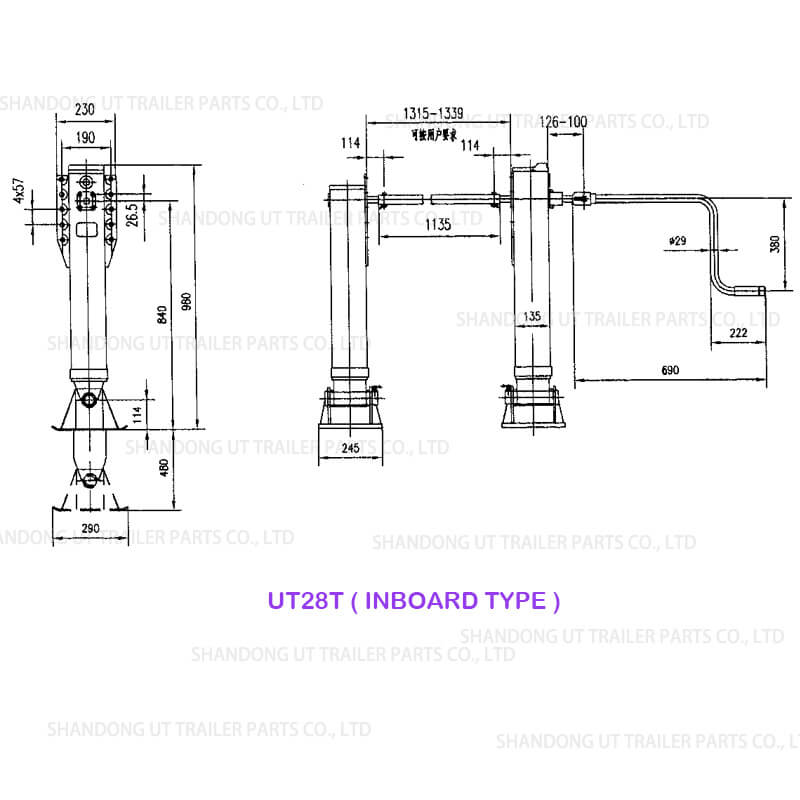

Model Number | A | B | D | E |
UT25T(19) | 980 | 840 | 480 | 135 |
UT28T(19) | 980 | 840 | 480 | 135 |
UT30T(19) | 980 | 840 | 480 | 143 |
