FEATURE

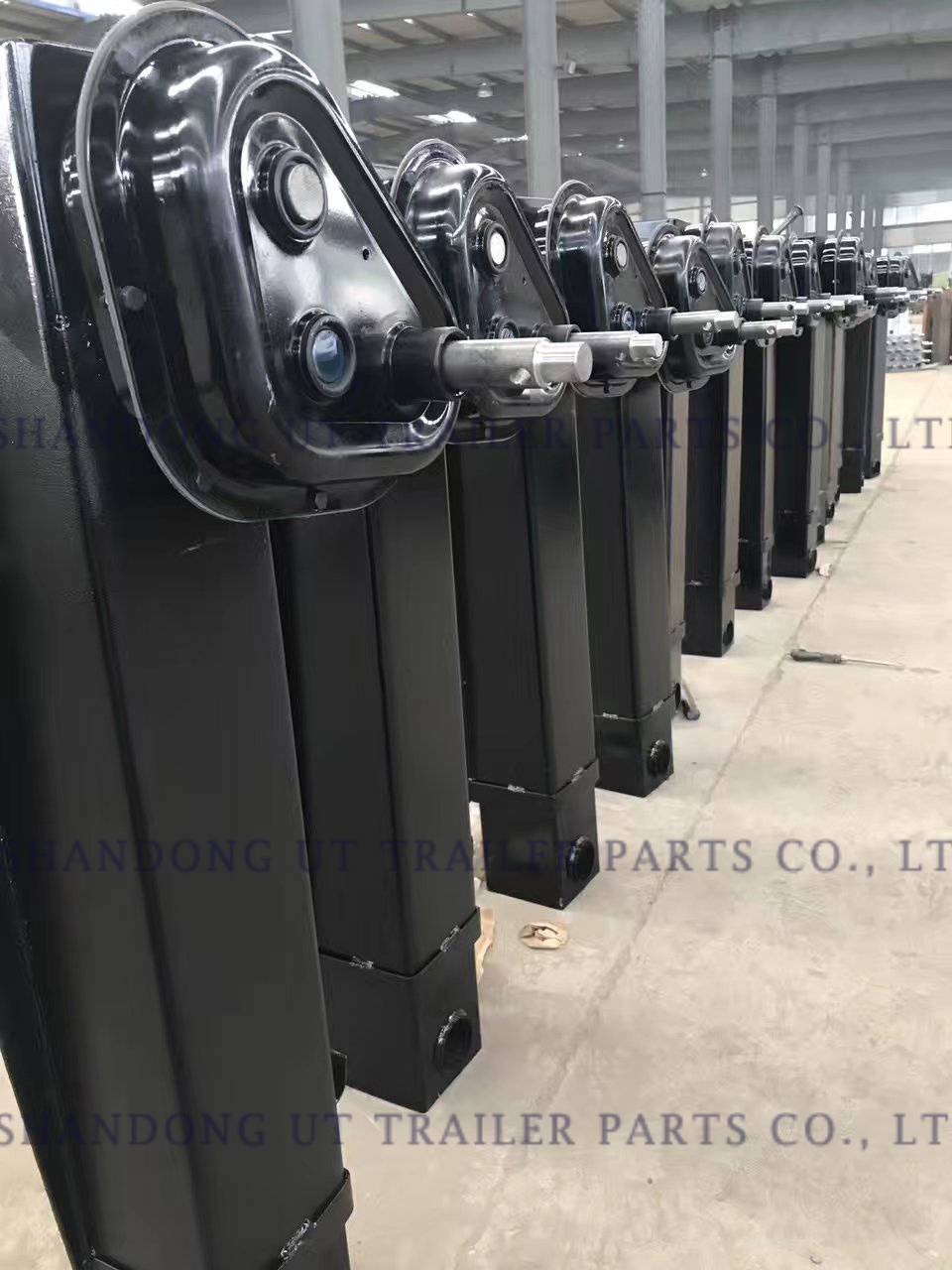

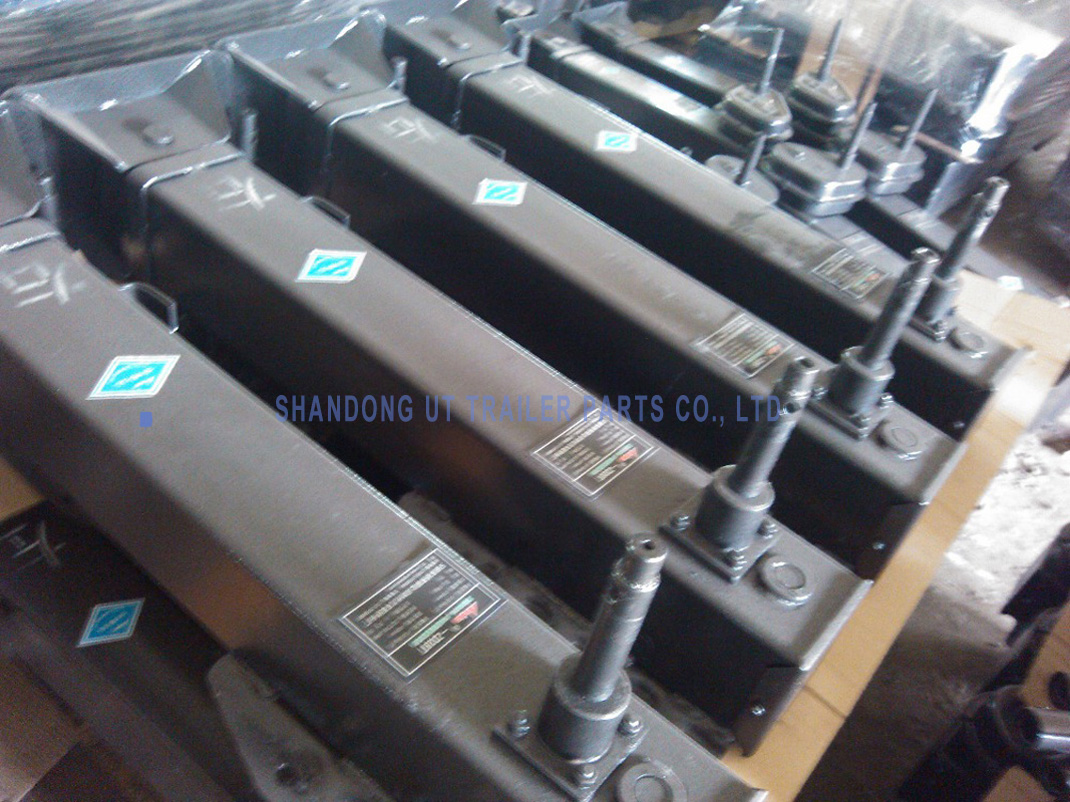

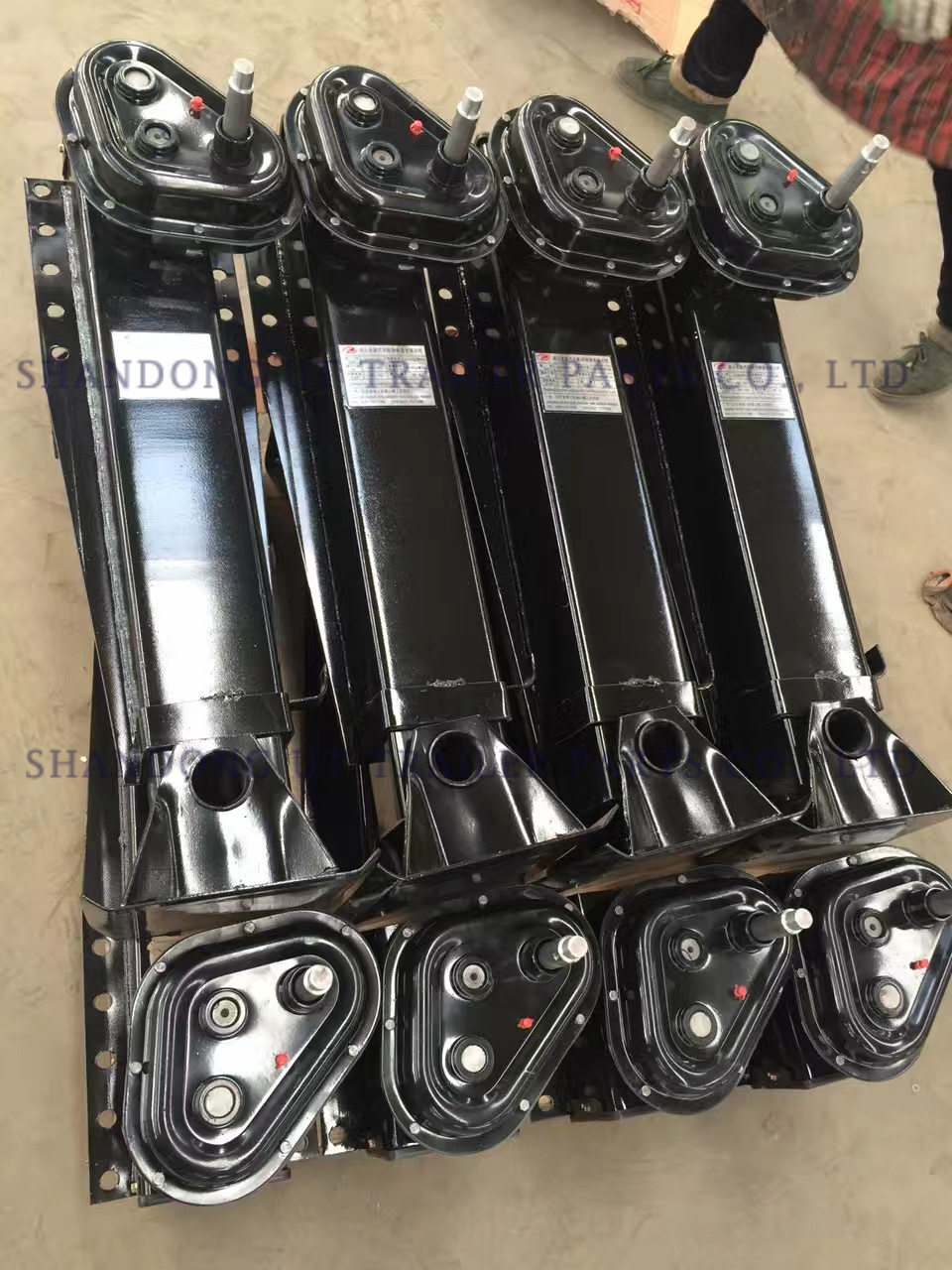

Landing gear for semi-trailers, full trailers and trucks
Operation: both Single-Side Operation and Double-Side Operation type.
Gearbox type: both Gearbox inside and Gearbox outside type
Sand shoe: T-Shoe, Casting T-Shoe, S-Shoe, R-Shoe and A-Shoe.
Capacity: 5ton, 8ton, 15ton, 20ton,25ton, 28ton, 30ton and 35ton.
Design: Common type, Similar to FUWA, JOST, HOLLAND,YORK etc
Production Capacity: 3000 pairs per month
Package: By pallet, By wooden case or as your requirement
Main Market: South-east Asia, South America, Africa, Australia, Russia, Middle East, etc
UT LANDING GEAR FEATURES:
1.Lead screw is rolled forming from extra-duty feature steel.
2.Gears are made of high grade forging steel.
3.Dimension of connection meets with TTMA.AAR specification.
4. Lead screw nut applies floating construction, easier for lift and longer persistence for use.
5. Special dimension could be accepted after confirmation.
6. Static load, lift test and drop test accord with ABS specification.
PARAMETER

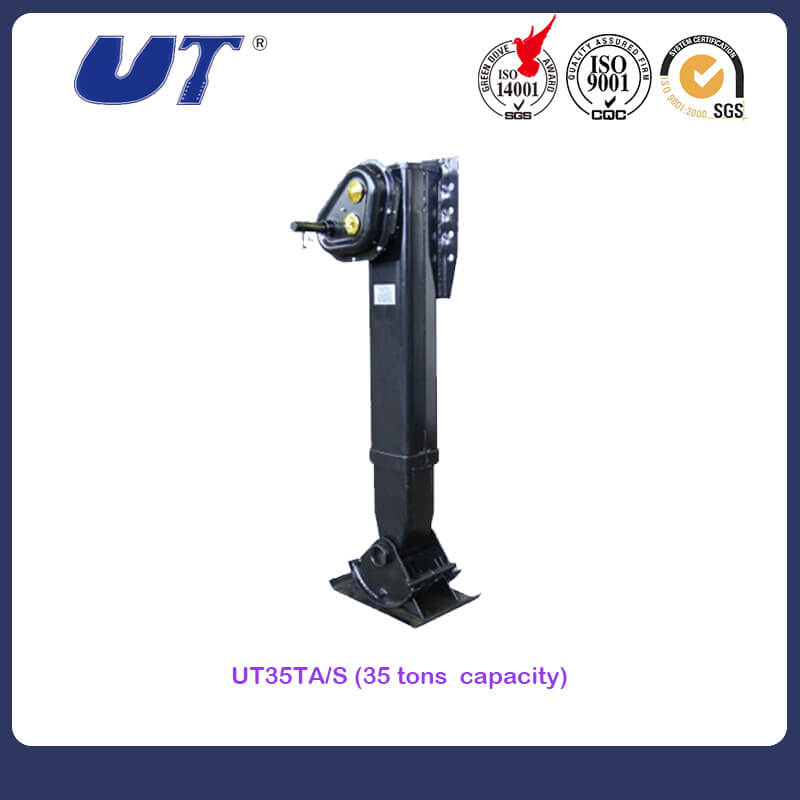

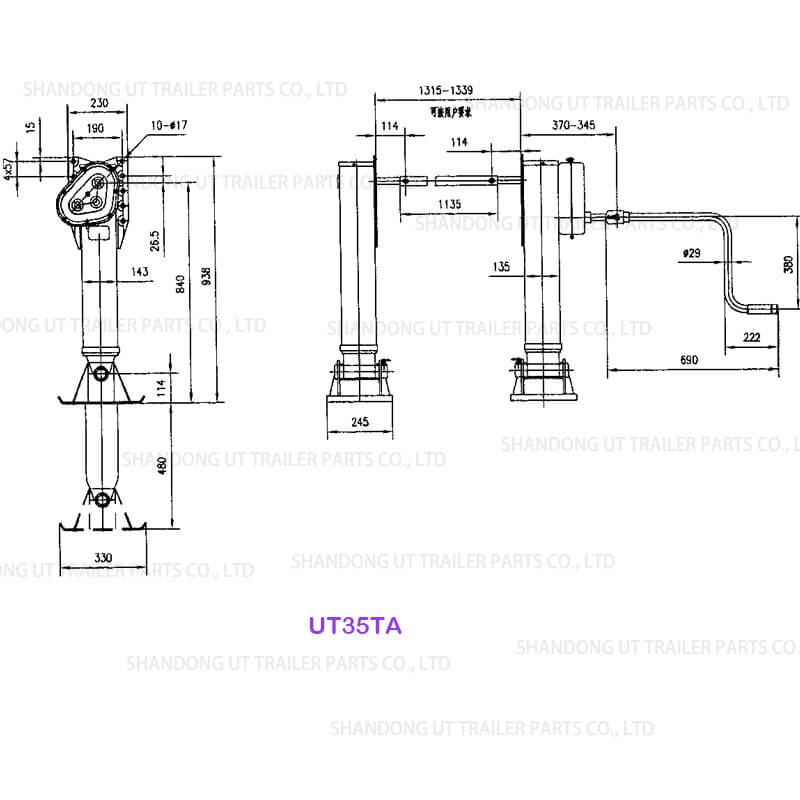

Model Number | UT35TA |
Static Load Capacity（T） | 80 |
Lifting Capacity(T) | 35 |
High Gear（mm） | 5.42 |
Low Gear（mm） | 0.72 |
Travel Max(mm) | 355 430 480 |
Assembly height（mm） | 736 811 861 |
Standard Weight(kg) | 106 112 116 |
