You are here: Home » Products » AXLE » Lowbed type axle » Lowbed Series Axle
Share to:

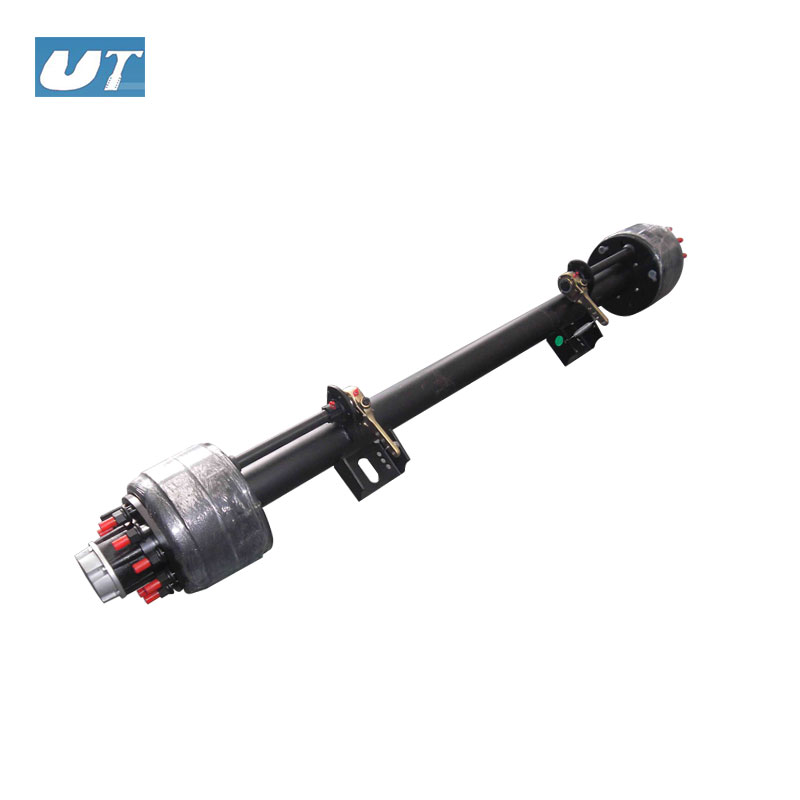

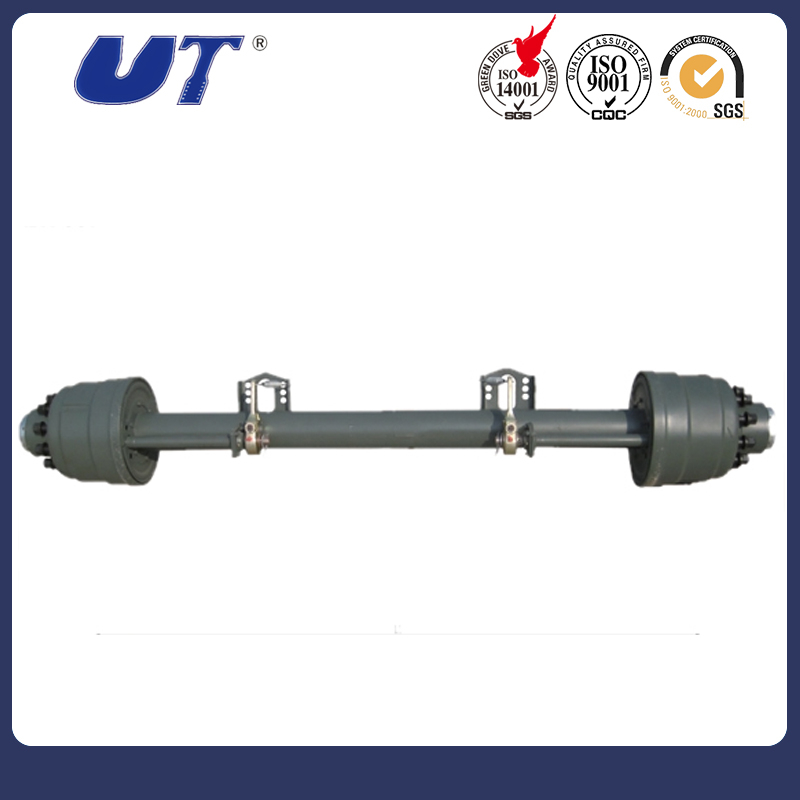

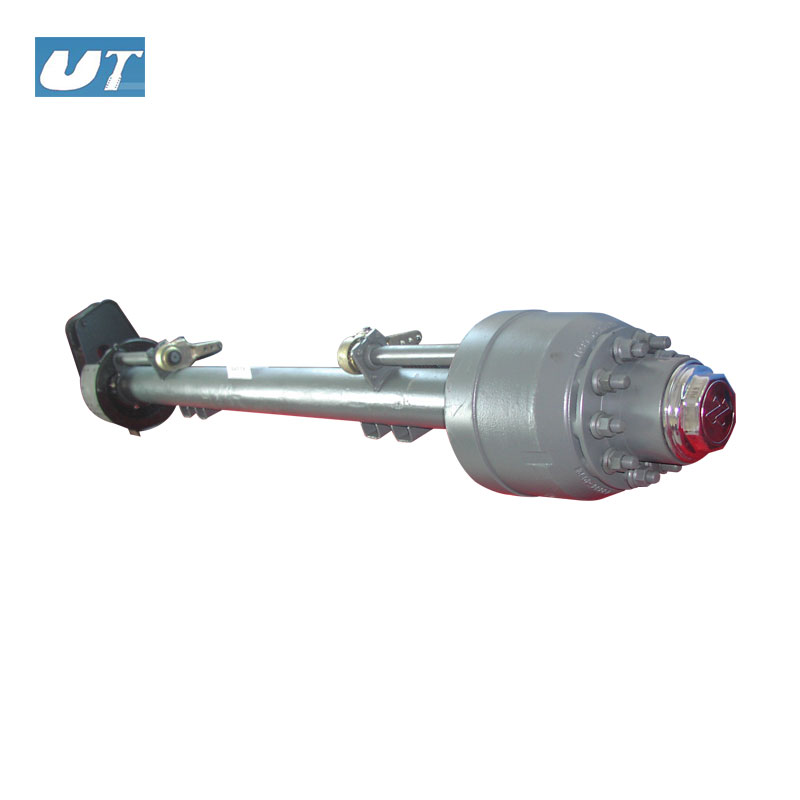

Lowbed Series Axle

lowbed trailer lowboy axle

Quantity:
  • UTL11RA01B1
  • UT
  • 6-001

FEATURE

1.Special heat-treat alloy steel axle beam, it has the virtues of good synthetic performance, strong load ability and lower self weight.

2.Wholly heat treatment for high quality alloy forged solid spindle, providing superior fatigue capability.

3.High performance asbestos free brake linings extend service life.

4.Camshaft matching with special seals, can ensure no entry of the grease into the brake drum thus axle will be more safety.

5.Mobil grease lengthens maintenance-free time.

6.Bearing is the domestic top brand, with the advantages of over loading capability, high rotating speed,good intensity, abrade resistant and heat resistant.

7.Wheel nut is made of alloy steel with high strength, good tensile and bending resistance,not easy to break.

8.Key components of axle are processed by digital equipment, complied with the international standard. Special requirements can also be meet as per clients request.


PARAMETER





Model

Capacity

Brake

Track

Distance of Spring

Distance of Brake Chamber

Axle tube

Wheel Fixing

Bearing

Total Length

Weight

Recommend wheel

T

mm

mm

mm

mm

mm

Stud

P.C.D.

C.B.D.


mm

kg


UTL11RA01B1

11

311x190

1820

920

270

127

x16

10-M22x1.5 ISO

225

176

518445/518445

2166

275

6.5-15

17.5x6.75
