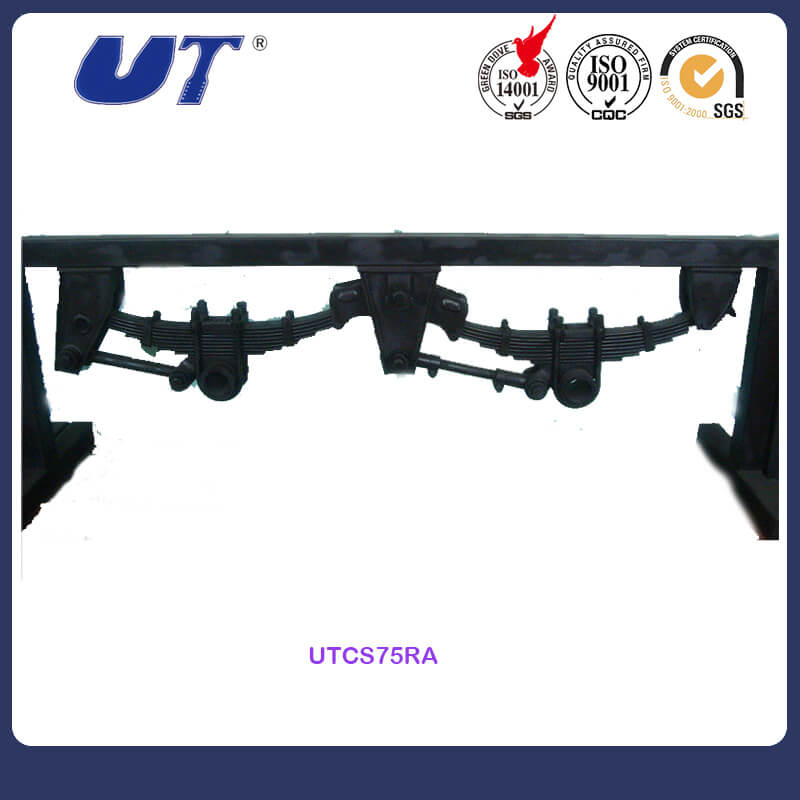

75 Series (Round Axle Beam)

Quantity:
  • 75 Series (Round Axle Beam)
  • UT

FEATURE









York/YTE type mechanical Suspension ( Both overslung type and underslung type)


1. Overlung and underslung type

2. The leaf spring could be 75mm and 90mm

3. The axle beam could round and square ,the size is 5’’ and 6’’

4. Axle spacing: 1300m, 1310mm, 1360mm ,1540mm

5. Axle beam size: 5’’ and 6’’ / 127mm and 150mm

6. One-axle, tandem, tri-axle are optional


We as well can supply all the series of York design suspension parts, such as 900201 front hanger, 900203 rear hanger, 900202 equalizer hanger, 900206 equalizer, 770706 leaf spring, etc.



IMPORTANT REMARK: we can produce fully according with your samples and drawings.

PARAMETER




单轴载重(Capacity):12T Per axle


板簧(Leaf Spring)75mmx13mmx8 pcs

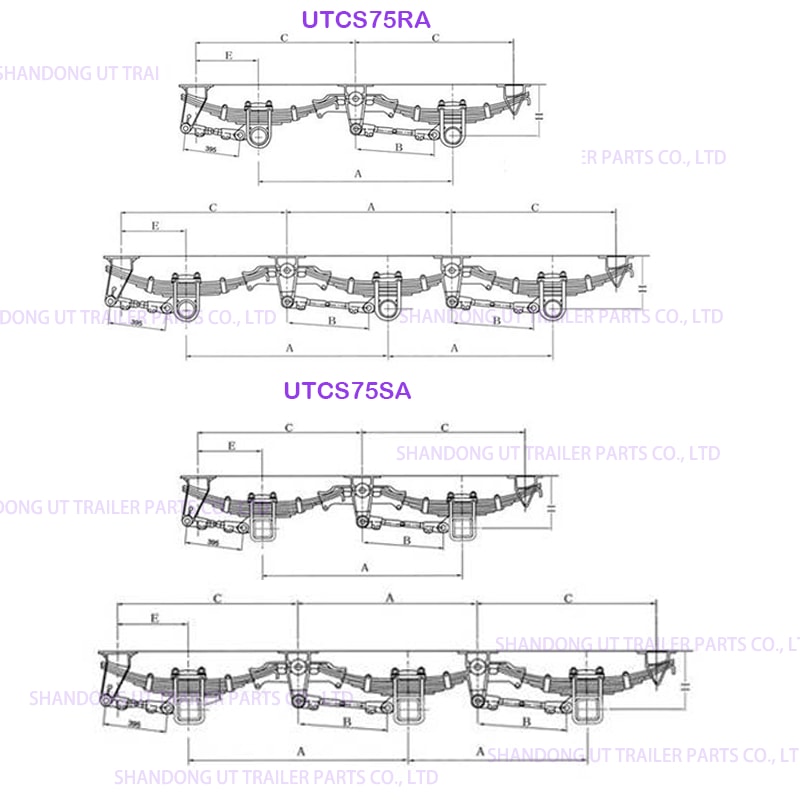

安装尺寸如下表 Dimension:



A(mm)

C(mm)

H(mm)

1

550

438

2/3

1315

1095

400/425/450/475

3

565

438

2/3

1232

1054

400/425/450/475

5

550

438

2/3

1232

1054

385/410/435/460

7

520

438

2/3

1384

1130

385/410/435/460

<span "="" style=";padding: 0px">2/3





注:可按照客户要求专门设计制造 Note: Optional size is available
