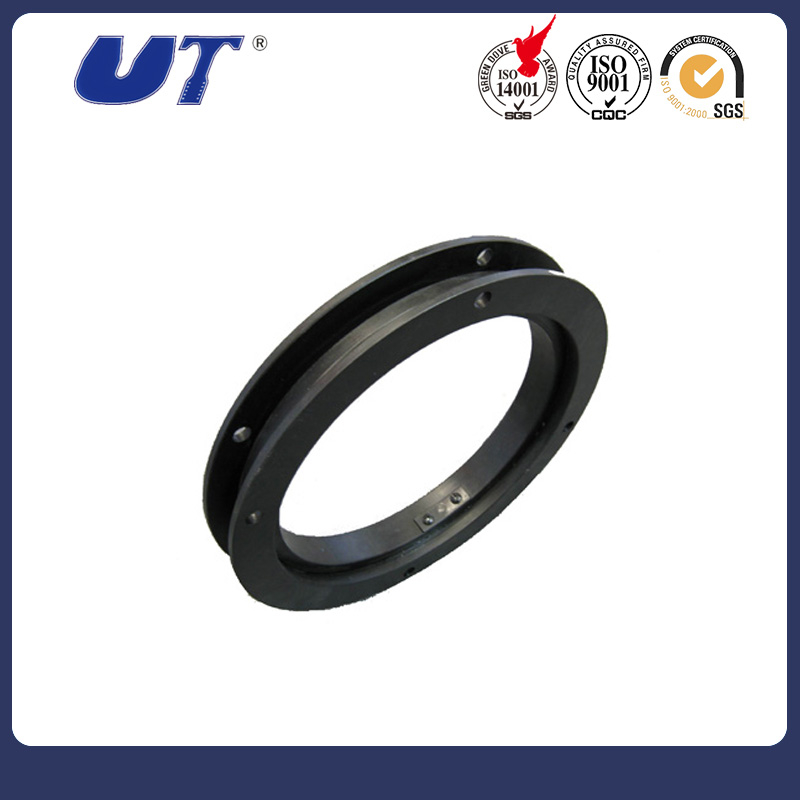

Turntable UA01 Type

1.Material of the rings: QT500-7 ductile cast iron, with good wear-resisting property.
2.Hardness of balls: 60-66 HRC, material is ball bearing steels SAE52100
3.Turntable can be with or without mounting holes
4.Can design and manufacture turntable according to Client's requirements

Quantity:
  • UT300-55UA01
  • UT
  • UA01

FEATURE

1.Material of the rings: QT500-7 ductile cast iron, with good wear-resisting property.
2.Hardness of balls: 60-66 HRC, material is ball bearing steels SAE52100

3.Turntable can be with or without mounting holes

4.Can design and manufacture turntable according to Client's requirements.


PARAMETER

Type



Part No.

A

B

E

F

H

Capacity

Weight



Related To



mm

mm

mm

mm

mm

ton

kg


















UA01



UT300-55UA01

295

295

220

200

55

0.5

8

U.300.12

UT400-55UA01

400

400

310

292

55

0.75

12.5

U.400.12

UT500-55UA01

500

500

410

392

55

1

16

U.500.12

UT600-65UA01

600

600

510

485

65

1.5

23

U.600.14

UT650-65UA01

650

650

560

535

65

1.75

25

U.650.14

UT700-65UA01

700

700

610

585

65

2

27.5

U.700.14

UT750-65UA01

750

750

660

635

65

2.3

30

U.750.14

UT800-65UA01

800

800

710

685

65

2.5

32

U.800.14

UT850-65UA01

850

850

760

735

65

2.75

34

U.850.14

UT900-65UA01

900

900

810

785

65

3

36

U.900.14

UT950-65UA01

950

950

860

835

65

3.25

37

U.950.14

UT1015-80UA01

1010

1015

900

882

80

4

60

U.1015.16

UT1050-65UA01

1050

1050

960

935

65

4.5

43

U.1050.14

UT1100-90UA01

1095

1108

985

949

90

5

45

U.1100.14

UT1105-80UA01

1100

1105

990

972

80

5

64

U.1105.16
