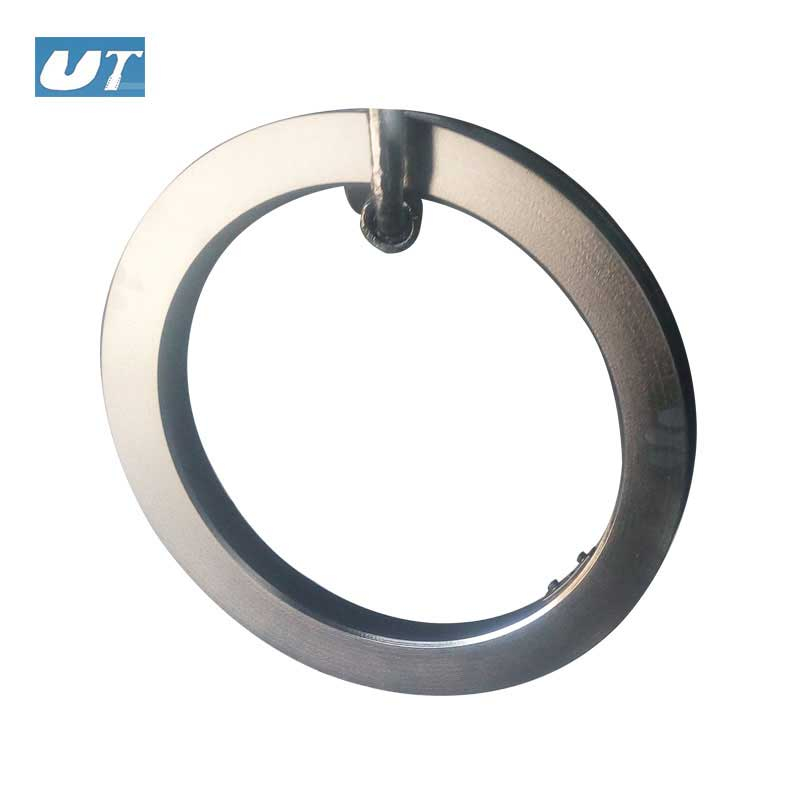

FEATURE
1.Material of the rings: QT500-7 ductile cast iron, with good wear-resisting property.
2.Hardness of balls: 60-66 HRC, material is ball bearing steels SAE52100
3.Turntable can be with or without mounting holes
4.Can design and manufacture turntable according to Client's requirements.
PARAMETER

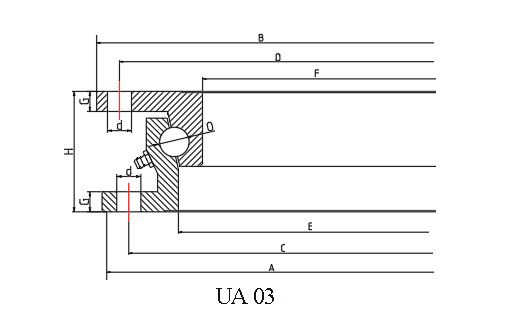

Type |
Part No. | A | B | E | F | H | Capacity | Weight |
Related To |
mm | mm | mm | mm | mm | ton | kg | |||
UA03 | UT1008-90UA03 | 1000 | 1008 | 886 | 849 | 90 | 10 | 78 | SB1000-22LW |
UT1100-90UA03 | 1095 | 1108 | 986 | 949 | 90 | 12 | 86 | 1100-22 | |
UT1200-90UA03 | 1195 | 1208 | 1086 | 1050 | 90 | 13 | 95 | 1200-22 | |
UT1211-90UA03 | 1200 | 1211 | 1083 | 1050 | 90 | 13 | 95 | 1211-22 | |
UT1315-90UA03 | 1300 | 1315 | 1180 | 1146 | 90 | 14 | 107 |
