FEATURE
1.Material of the rings: QT500-7 ductile cast iron, with good wear-resisting property.
2.Hardness of balls: 60-66 HRC, material is ball bearing steels SAE52100
3.Turntable can be with or without mounting holes
4.Can design and manufacture turntable according to Client's requirements.
PARAMETER

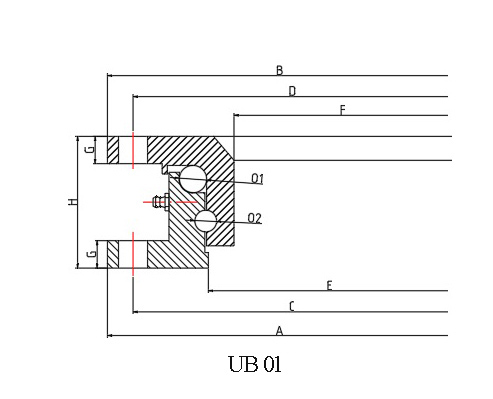

Type | Part No. | A | B | E | F | H | Capacity | Weight |
mm | mm | mm | mm | mm | ton | kg | ||
UB01 | UT1000-80UB01 | 1000 | 1000 | 874 | 840 | 80 | 15 | 82 |
UT1000-80UB01 | 1000 | 1000 | 874 | 840 | 90 | 15 | 85 | |
UT1100-78UB01 | 1100 | 1100 | 988 | 952 | 78 | 12 | 82 | |
UT1100-85UB01 | 1100 | 1100 | 976 | 943 | 85 | 18 | 97 | |
UT1600-92UB01 | 1600 | 1600 | 1400 | 1400 | 92 | 30 | 214 |
