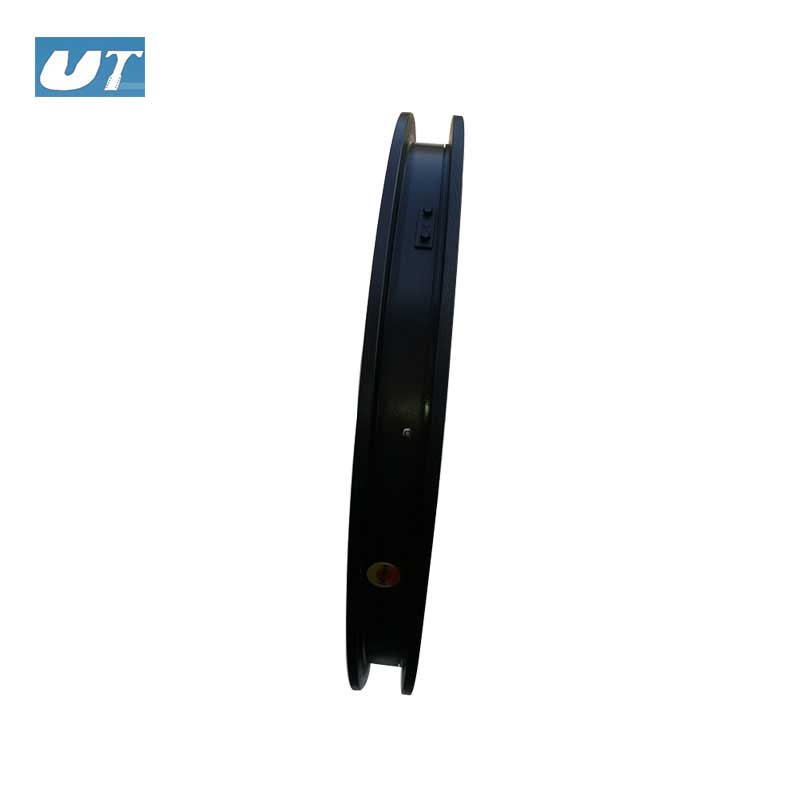

FEATURE
1.Material of the rings: QT500-7 ductile cast iron, with good wear-resisting property.
2.Hardness of balls: 60-66 HRC, material is ball bearing steels SAE52100
3.Turntable can be with or without mounting holes
4.Can design and manufacture turntable according to Client's requirements.
PARAMETER

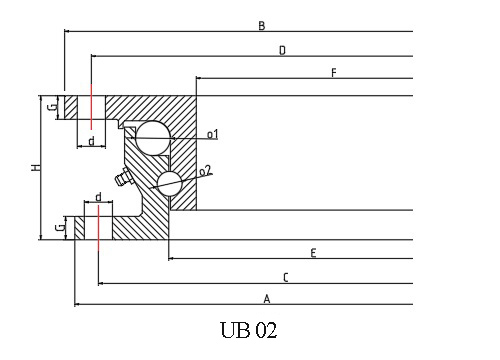

Type | Part No. | A | B | E | F | H | Capacity | Weight | Related To |
mm | mm | mm | mm | mm | ton | kg | |||
UB02 | UT1000-90UB02 | 987 | 1000 | 864 | 834 | 90 | 10 | 79 | DB90-12LW |
UT1066-90UB02 | 1058 | 1066 | 930 | 900 | 90 | 11 | 88 | ||
UT1108-90UB02A | 1095 | 1108 | 980 | 943 | 90 | 18 | 95 | ||
UT1108-90UB02B | 1095 | 1108 | 974 | 942 | 90 | 19 | 97 | DK90/16 Frue | |
UT1208-92UB02 | 1208 | 1195 | 1076 | 1040 | 92 | 22 | 108 |
FEATURE
1.Material of the rings: QT500-7 ductile cast iron, with good wear-resisting property.
2.Hardness of balls: 60-66 HRC, material is ball bearing steels SAE52100
3.Turntable can be with or without mounting holes
4.Can design and manufacture turntable according to Client's requirements.
PARAMETER
Type | Part No. | A | B | E | F | H | Capacity | Weight | Related To |
mm | mm | mm | mm | mm | ton | kg | |||
UB02 | UT1000-90UB02 | 987 | 1000 | 864 | 834 | 90 | 10 | 79 | DB90-12LW |
UT1066-90UB02 | 1058 | 1066 | 930 | 900 | 90 | 11 | 88 | ||
UT1108-90UB02A | 1095 | 1108 | 980 | 943 | 90 | 18 | 95 | ||
UT1108-90UB02B | 1095 | 1108 | 974 | 942 | 90 | 19 | 97 | DK90/16 Frue | |
UT1208-92UB02 | 1208 | 1195 | 1076 | 1040 | 92 | 22 | 108 |
