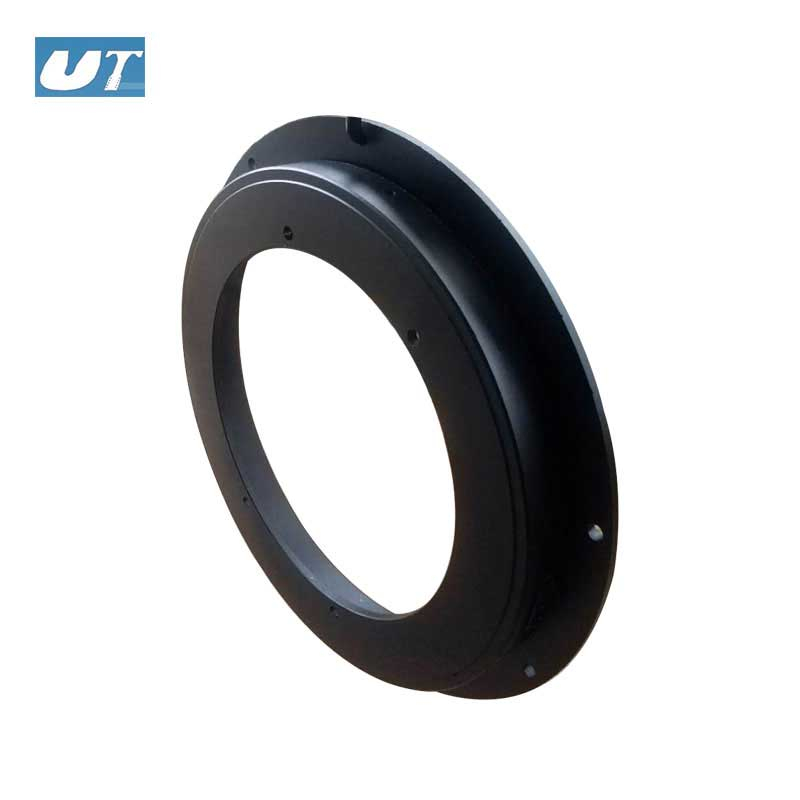

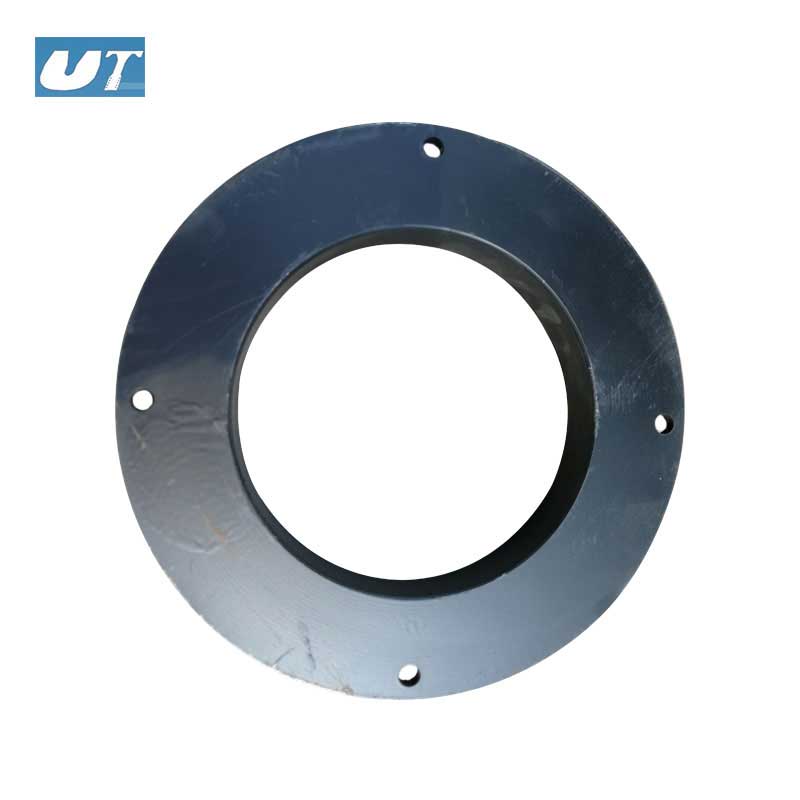

FEATURE
1.Material of the rings: QT500-7 ductile cast iron, with good wear-resisting property.
2.Hardness of balls: 60-66 HRC, material is ball bearing steels SAE52100
3.Turntable can be with or without mounting holes
4.Can design and manufacture turntable according to Client's requirements.
PARAMETER

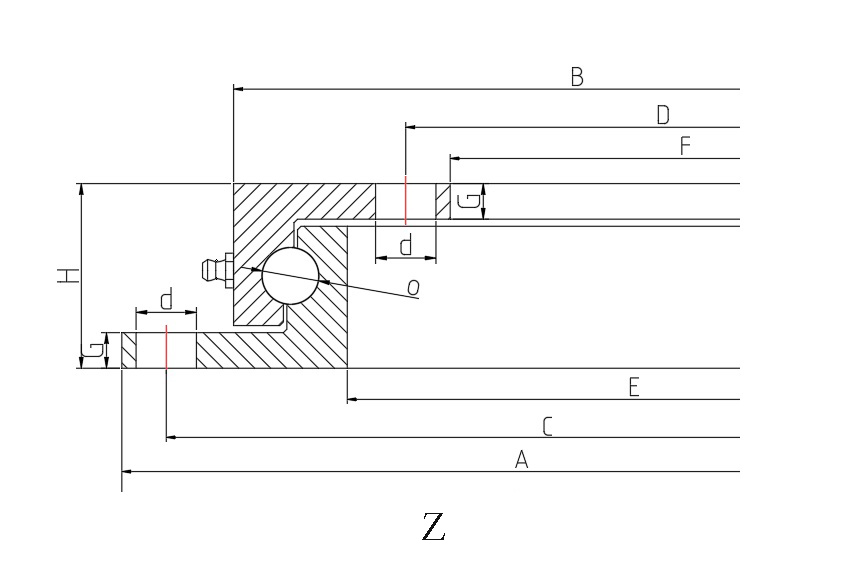

Type | Part No. | A | B | E | F | H | Capacity | Weight | Related To |
mm | mm | mm | mm | mm | ton | kg | |||
Z | UT400-52Z | 400 | 334 | 281 | 215 | 52 | 1 | 12 | Z.400.14 |
UT500-52Z | 500 | 434 | 381 | 315 | 52 | 1.5 | 16 | Z.500.14 | |
UT650-52Z | 650 | 584 | 531 | 465 | 52 | 2 | 22 | Z.650.14 | |
UT750-52Z | 750 | 687 | 623 | 565 | 52 | 2.5 | 31 | Z.750.16 | |
UT850-52Z | 850 | 787 | 723 | 665 | 52 | 3 | 35 | Z.850.16 | |
UT950-52Z | 950 | 887 | 823 | 765 | 52 | 3.5 | 40 | Z.950.16 | |
UT1050-52Z | 1050 | 987 | 923 | 854 | 52 | 4 | 45 | Z.1050.16 | |
UT1102-52Z | 1102 | 1027 | 993 | 965 | 52 | 7 | 57 | Z.1100.16 | |
UT1120-52Z | 1120 | 1052 | 989 | 925 | 52 | 6 | 49 | Z.1120.16 |
