FEATURE

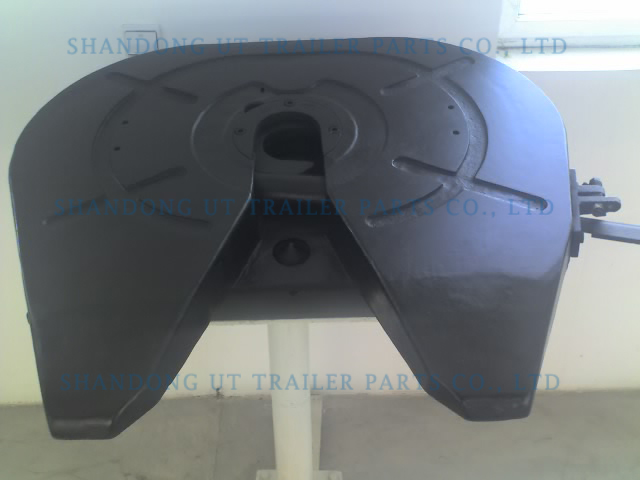

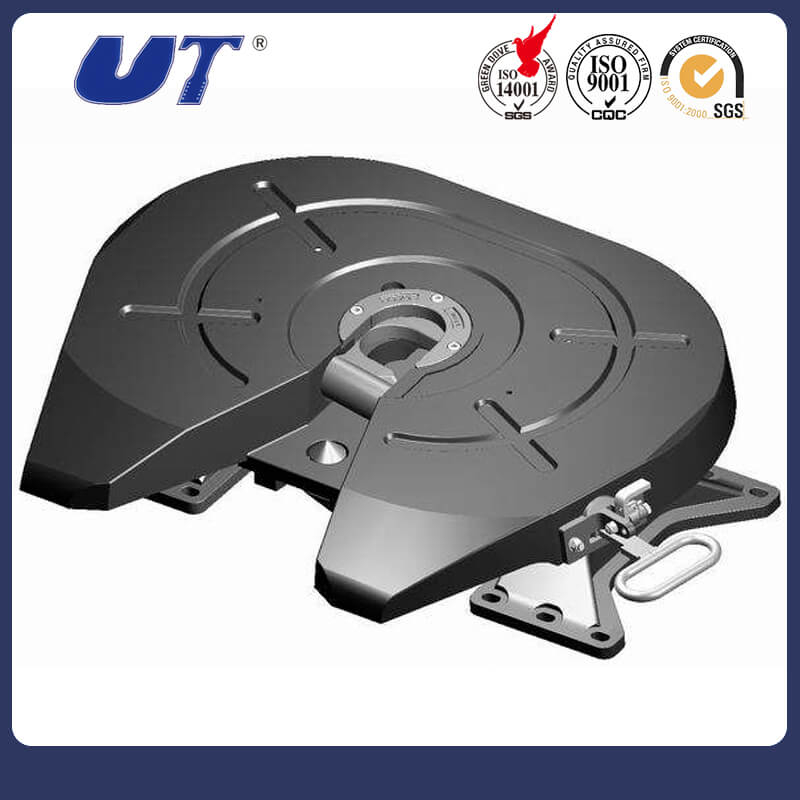

◇First class fifth wheel producing as per technology from American
◇High strength casting steel top plate with machined surface guarantee a long time smooth runningFeatures
◇More safe for use with convenient and reliable auto-lock system
◇The fifth wheel is produced by fabrication according to DIN74081 and ISO3842.It suits for 2” king pins(50mm)/3.5” king pins(90mm).
PARAMETER
| Support Height(H) (mm) | D-Value (KN) | Mounting Height（H） (mm) | Oscillationsangle(<°) | Horizontal angle(<°) | Thickness (mm) |
UT-CFW50-15.05 | 77 | 176 | 150.5 | 12 | —— | 168 |
UT-CFW50-16.65 | 93 | 176 | 166.5 | 15 | —— | 172 |
UT-CFW50-18.05 | 107 | 176 | 180.5 | 18 | —— | 176 |
UT-CFW90-25 | 290 | 260 | 250 | 15 | —— | 250 |
