FEATURE
◇Complies with Australian Standards AS 2175-1995 and Australian Design Rule ADR62/01
◇40Cr.27SiMn is smithies, produced by numerically controlled machine and quenching and tempering on the whole
◇50(2”) 90(3.5”) bolted-on series and welded series
PARAMETER

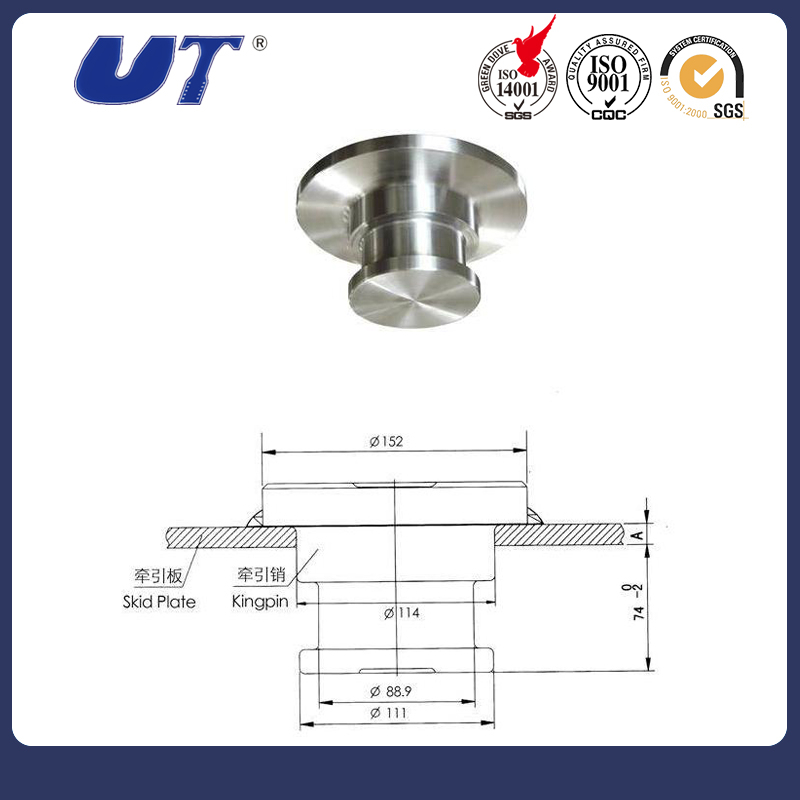

UT-WKP90, 3.5" welded kingpin 3.5”
Model | Size | Skid Plate Thickness (H) |
UT-WKP9010 | 90（3.5" ） | 10mm |
UT-WKP9012 | 90（3.5" ） | 12mm |
UT-WKP50, 2" welded kingpin 2”
Model | Size | Skid Plate Thickness (H) |
UT-WKP5008 | 50（2" ） | 8mm |
UT-WKP5010 | 50（2" ） | 10mm |
UT-WKP5012 | 50（2" ） | 12mm |
