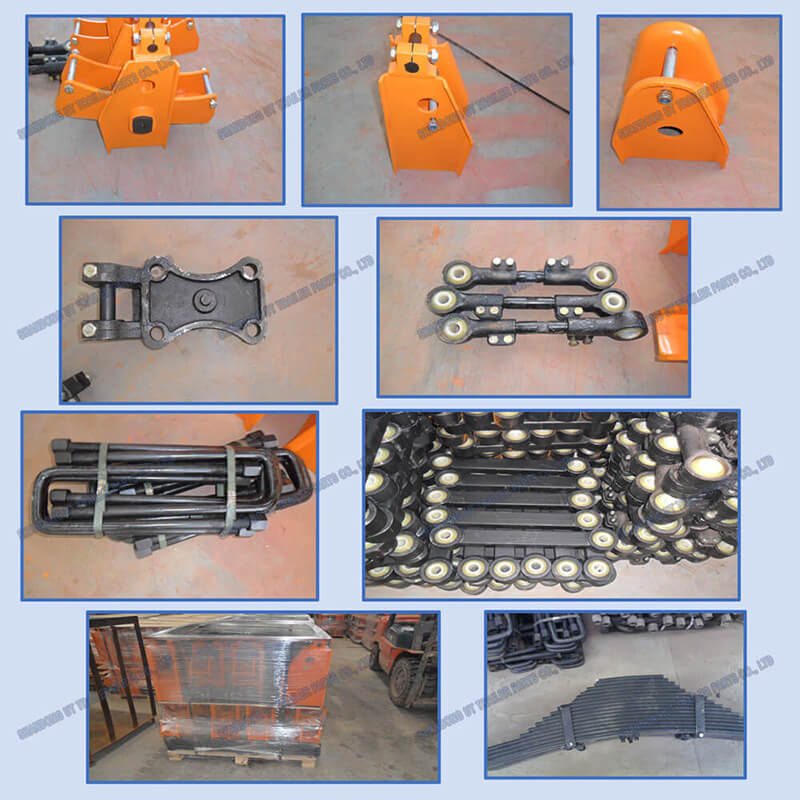

FEATURE
1) Hanger thickness: 4mm, 4.5mm, 6mm, 8mm or 10mm
2) King pin: 50mm, 60mm, 70mm
3) Suspension height: 130-350mm
4) Color: black/ red/orange/ by customer
5) Material: Q235B
6) Spring width: 75mm, 90mm, 100mm, 120mm
7) Axle spacing: 1310mm, 1360mm
8) No. Of spring piece/spring quantity is optional
9) Axle load is optional
10) Size: design as your requirement
11) Max payload: 55T for complete suspension
12) Axle beam: square/ round
13) Fishing: painting or galvanizing
14) Packing details: wooden tray or other ways according to your requirements
IMPORTANT REMARK: we can produce fully according with your samples and drawings.
PARAMETER

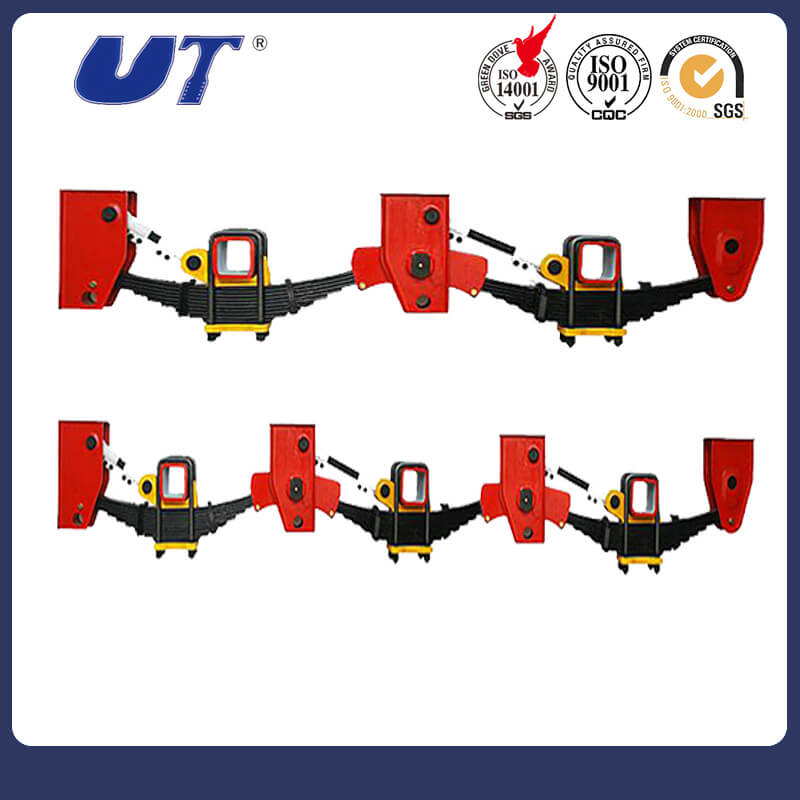

TWO AXLE TYPE
悬挂型号 ITEM | L1(mm) | L2(mm) | L3(mm) | A1(mm) | 承载能力(kg) AXLE LOAD (kg) |
UTAS11US2001 | 458 | 1310 | 1113 | 224 | 11000*2 |
UTAS11US2002 | 458 | 1360 | 1138 | 224 | 11000*2 |
UTAS11US2003 | 458 | 1500 | 1208 | 224 | 11000*2 |
UTAS11US2004 | 458 | 1310 | 1113 | 224 | 11000*3 |
UTAS11US2005 | 458 | 1360 | 1138 | 224 | 11000*3 |
UTAS11US2006 | 458 | 1500 | 1208 | 224 | 11000*3 |
